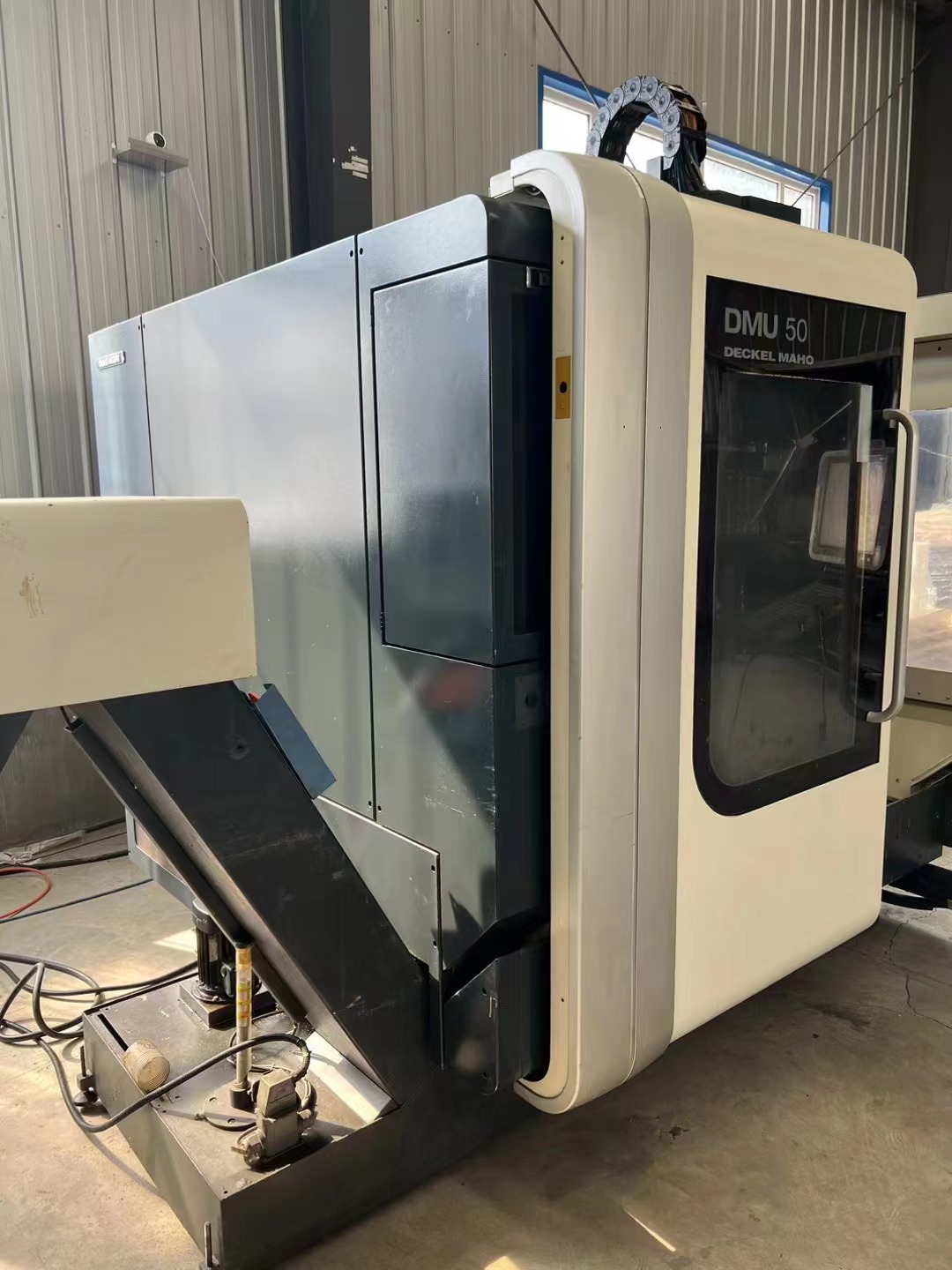

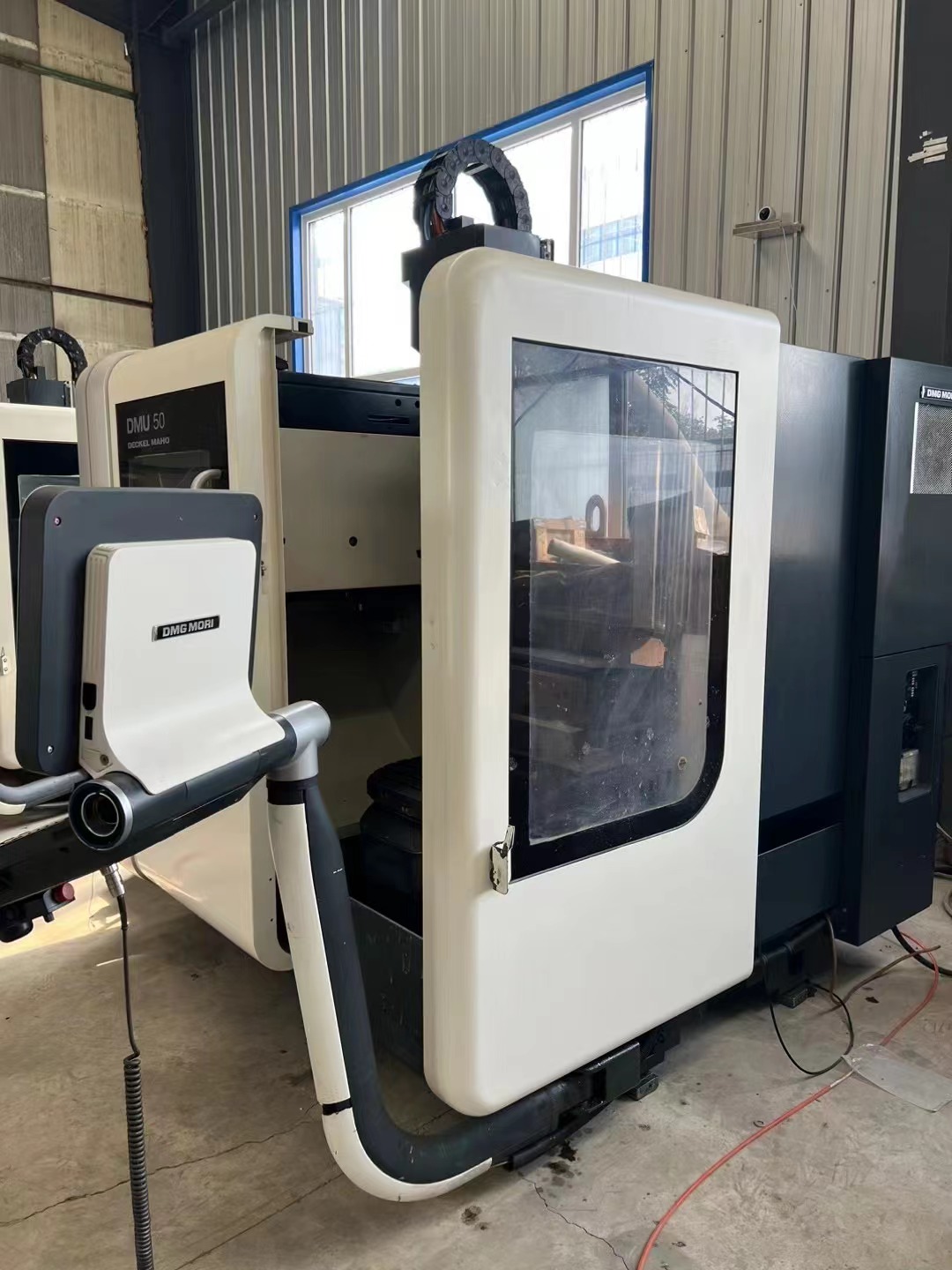

DMU 50 five-axis linkage machining center
Travel range: X/Y/Z axis 500/450/400 mm
30 m/min/rapid traverse speed
Produced in 2016, in place, can be tested to ensure accuracy

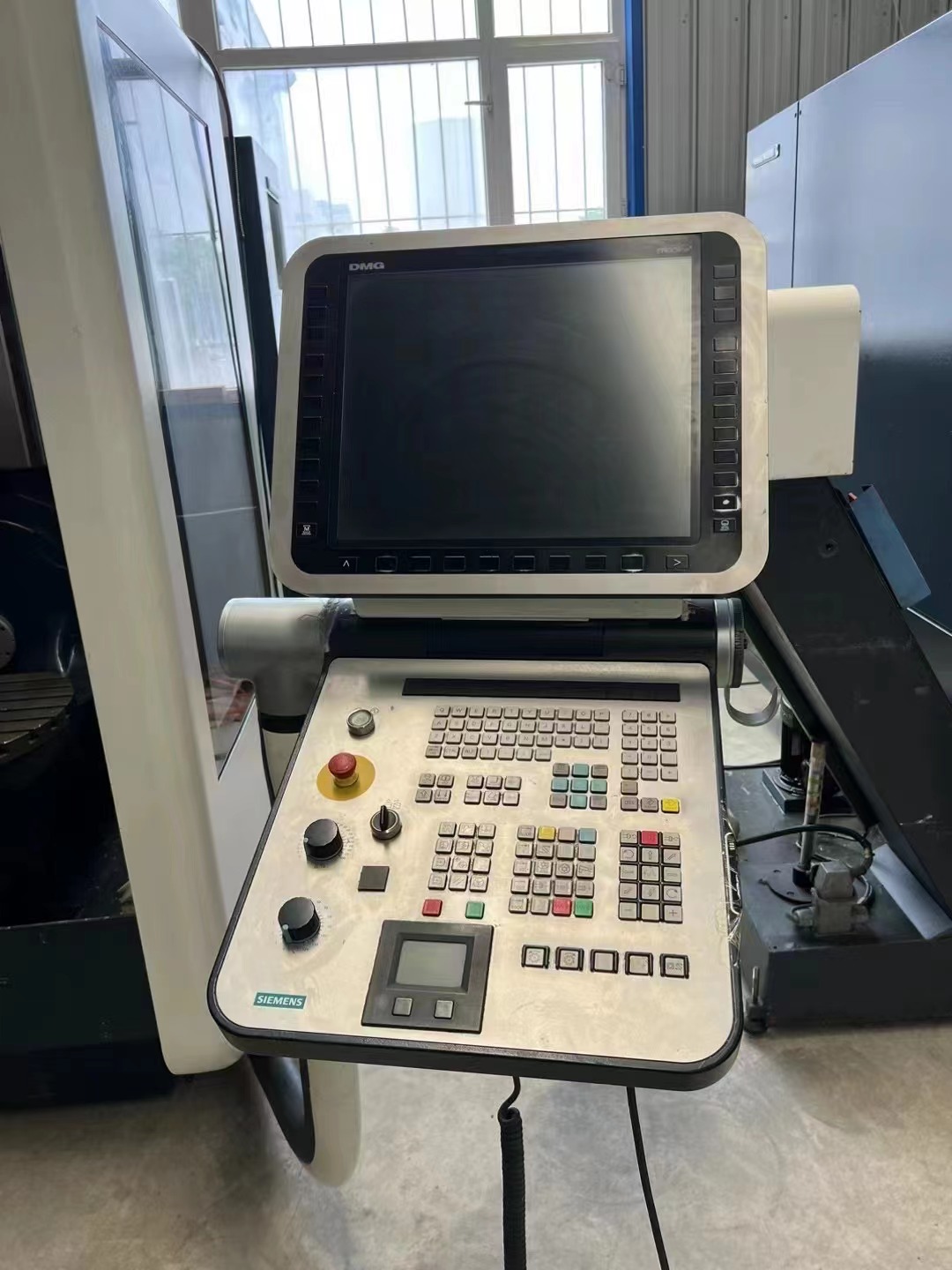

Siemens 840D SL Operate system
Options are:

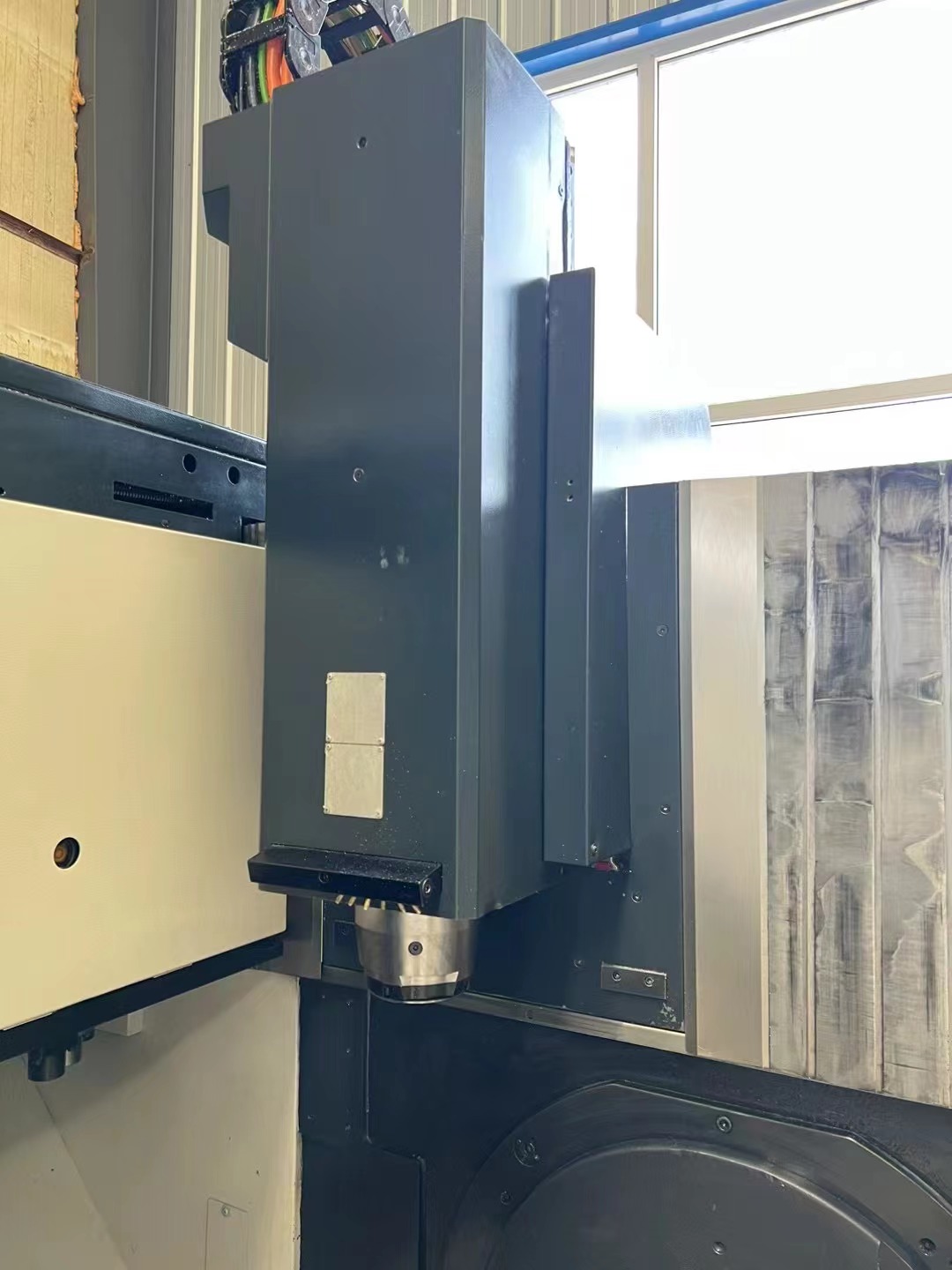

1． Spindle speed 20 –18,000 rpm SK40, tool holder, DIN 69871
Power: 35/25 kW / (40/100%DC)
Torque: 130/87 Nm / (40/100%DC)
30-position tool magazine

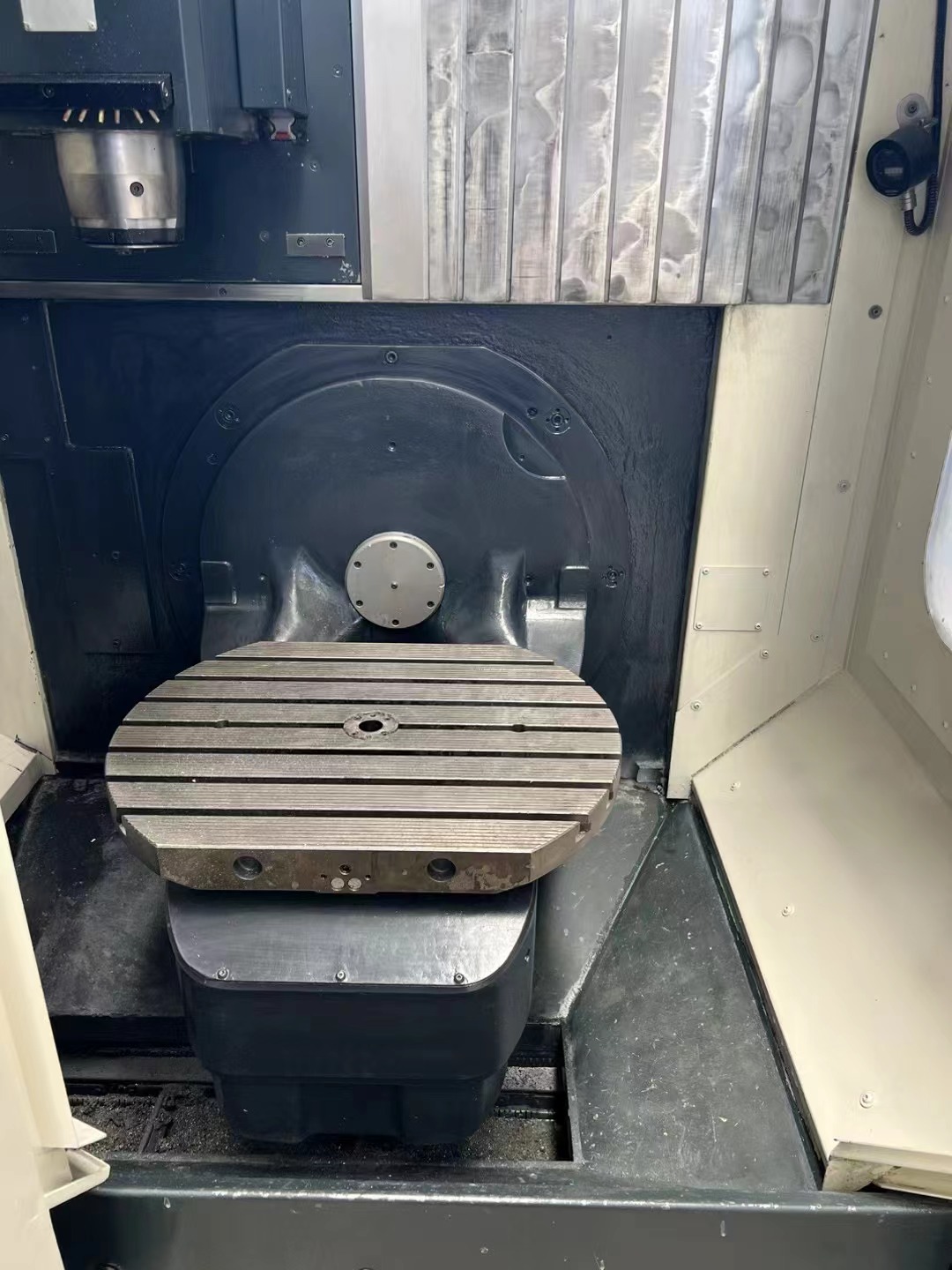

2. Rotary swing table, linked processing
Card mounting surface, diameter 630 x 500mm
Swing range - 5 to +110°, rotation axis 360°
Includes B and C axis direct measurement systems, and machining surface transformation
3． Forced cooling of electrical cabinets
4. Electronic handwheel
5. Water gun
6. Chip conveyor
7. X, Y, Z axis grating scale measurement system, including positive pressure air
8. Infrared probe function (probe not included)
9.3D quickSET, a tool for controlling and compensating the motion characteristics of 5-axis machine tools

(Hardware not included)
