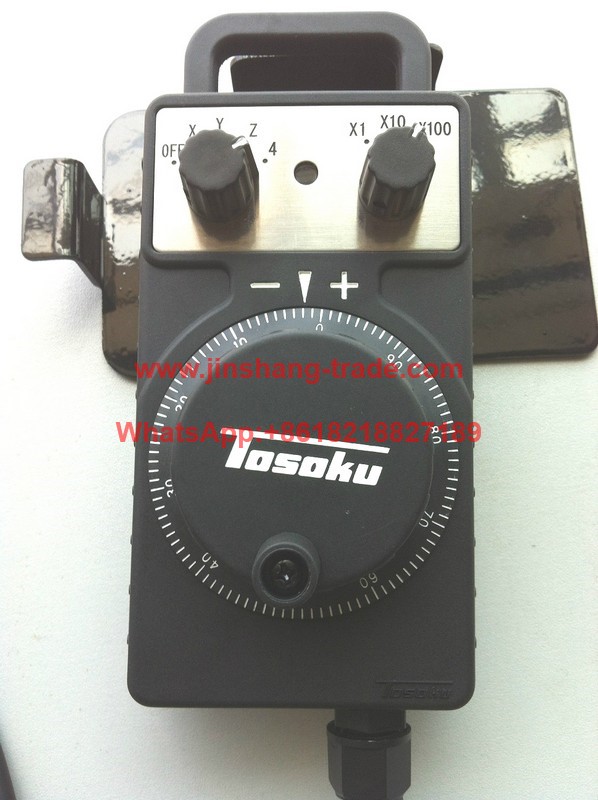

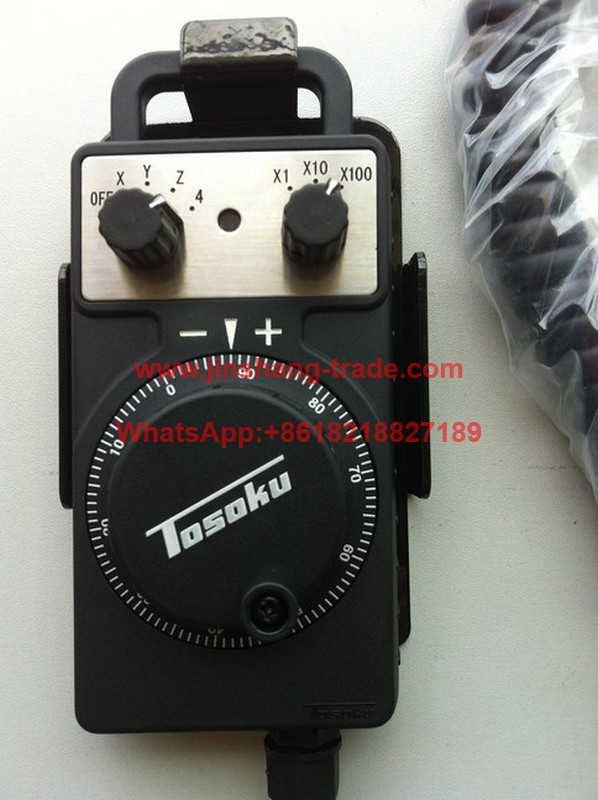

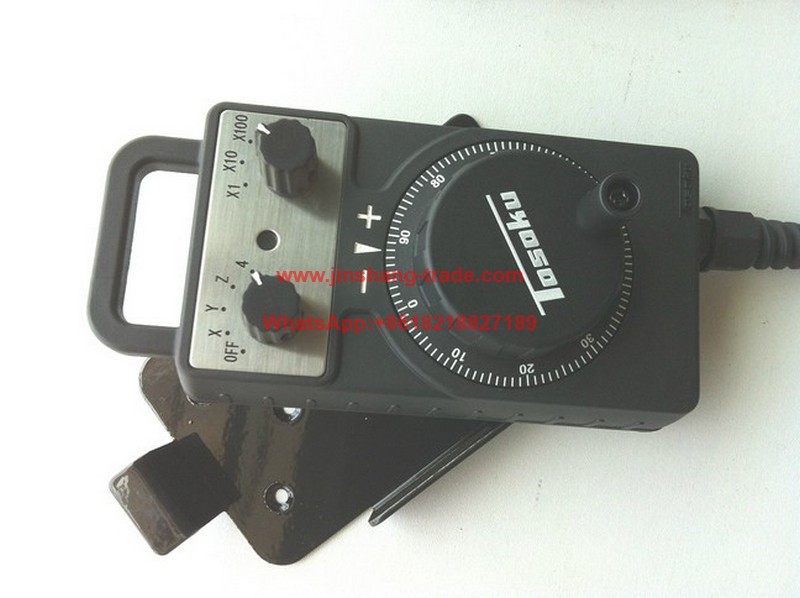

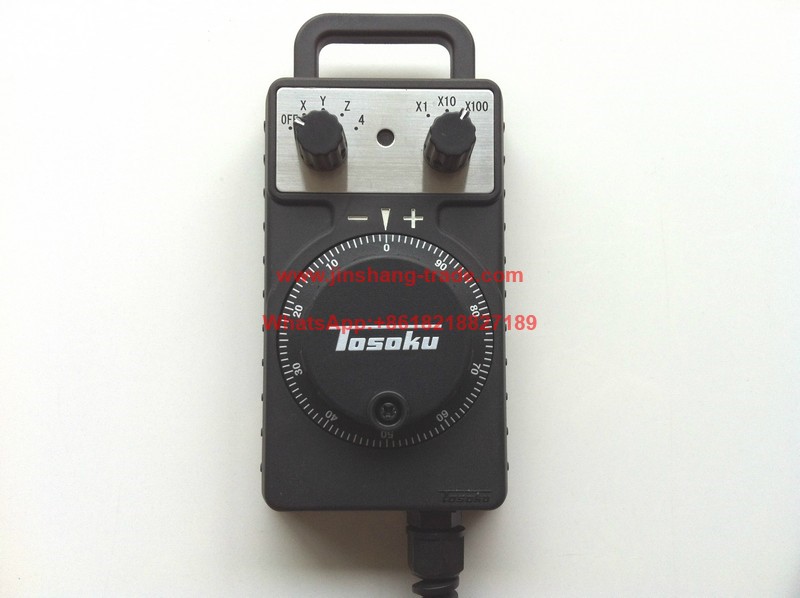

TOSOKU HC121 HC115 handwheel
Details
Product name: TOSOKU electronic handwheel

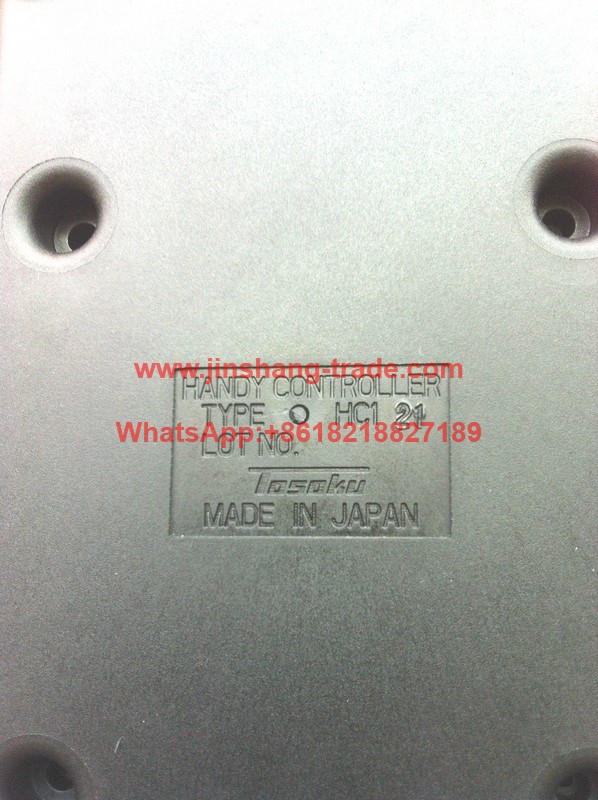

Product model: HC115, HC121 series
Brand: Japan Tosoku (Japan East Test)
Product Description
Manual Pulse Generator (also known as electronic handwheel, hand pulse generator, hand pulse, pulse wave generator, etc.) Tosoku electronic handwheel is suitable for various CNC control systems and is selected according to the following models and supply voltages. It is suitable for teaching-type CNC machine working origin setting, step fine adjustment, interrupt insertion and other actions. In addition, electronic handwheels are also widely used in printing machinery.
Feature description:
Ultra-thin [26mm].
Ultra-small size: 124mm (length)*73mm (width)*26mm (thickness).
Provides 25PPR and 100PPR pulse number output.
Various output interface types: voltage (single-ended), differential and other outputs are available to suit various applications.
The handheld body is sealed, dustproof and waterproof. [IP67 equivalent]
With power indicator light (LED, DC12V~24V)

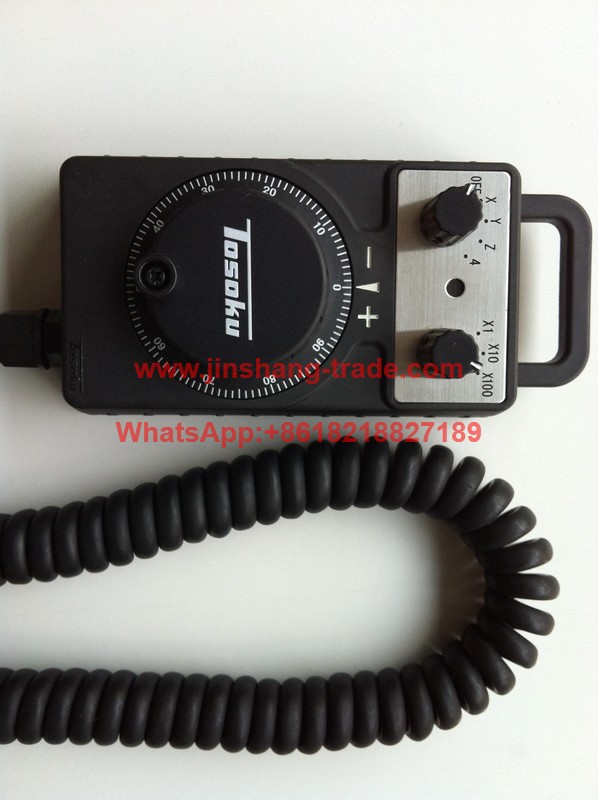

Special spring cable standard connection method, the wire guarantees a tensile life of 200,000 times
Easy installation, high compatibility
Non-contact optical detection structure: accuracy remains unchanged after millions of uses
Comply with international machinery export EN standards (EN61010, 1993)

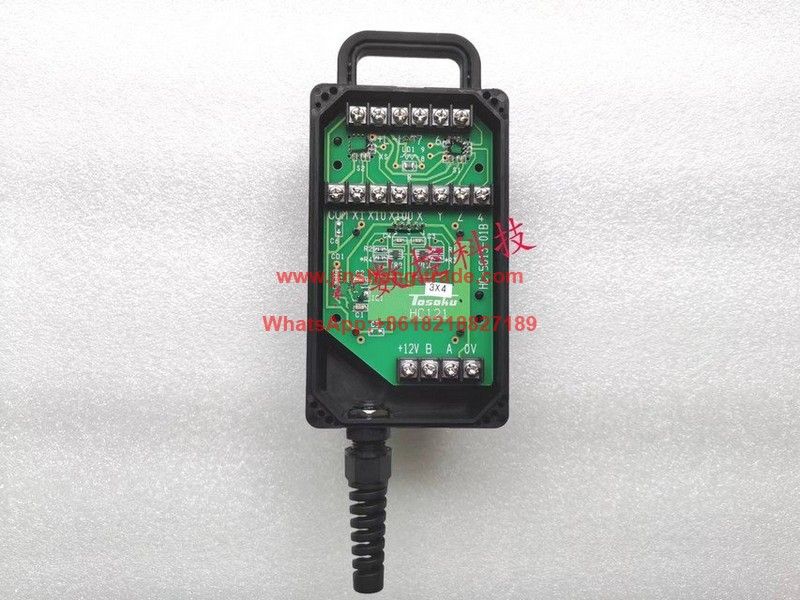

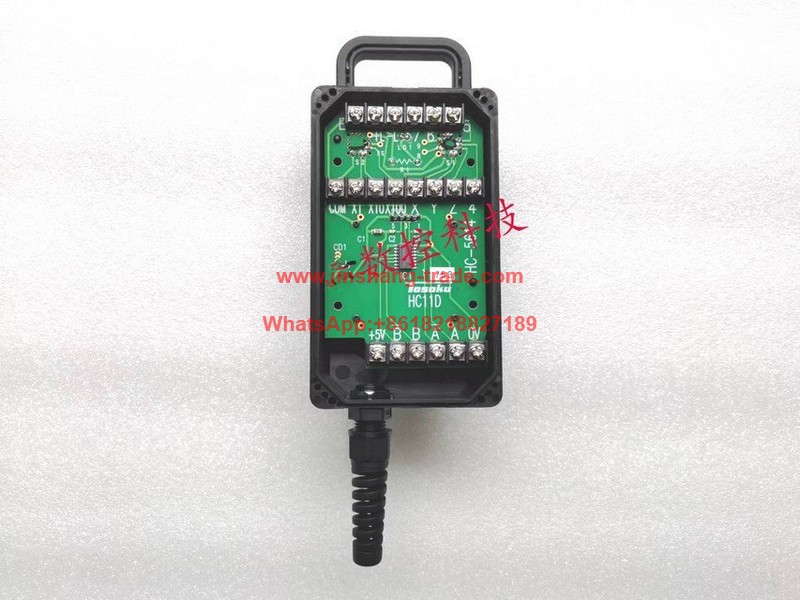

Please read the description of the baby carefully before taking the photo to avoid misunderstandings. In addition, the switch of this handwheel (MR8) is TOSOKU's unique special switch with insurance function. The current passing through exceeds 75 mA and will permanently self-energize. Open circuit. It protects the circuit board from damage. Therefore, please confirm the correct wiring before connecting to avoid unnecessary waste of money.
Product model: HC115, HC121 series
Brand: Japan Tosoku (Japan East Test)
Product Description
Manual Pulse Generator (also known as electronic handwheel, hand pulse generator, hand pulse, pulse wave generator, etc.) Tosoku electronic handwheel is suitable for various CNC control systems and is selected according to the following models and supply voltages. It is suitable for teaching-type CNC machine working origin setting, step fine adjustment, interrupt insertion and other actions. In addition, electronic handwheels are also widely used in printing machinery.
Feature description:
Ultra-thin [26mm].
Ultra-small size: 124mm (length)*73mm (width)*26mm (thickness).
Provides 25PPR and 100PPR pulse number output.
Various output interface types: voltage (single-ended), differential and other outputs are available to suit various applications.
The handheld body is sealed, dustproof and waterproof. [IP67 equivalent]
With power indicator light (LED, DC12V~24V)
Special spring cable standard connection method, the wire guarantees a tensile life of 200,000 times
Easy installation, high compatibility
Non-contact optical detection structure: accuracy remains unchanged after millions of uses
Comply with international machinery export EN standards (EN61010, 1993)
Please read the description of the baby carefully before taking the photo to avoid misunderstandings. In addition, the switch of this handwheel (MR8) is TOSOKU's unique special switch with insurance function. The current passing through exceeds 75 mA and will permanently self-energize. Open circuit. It protects the circuit board from damage. Therefore, please confirm the correct wiring before connecting to avoid unnecessary waste of money.
