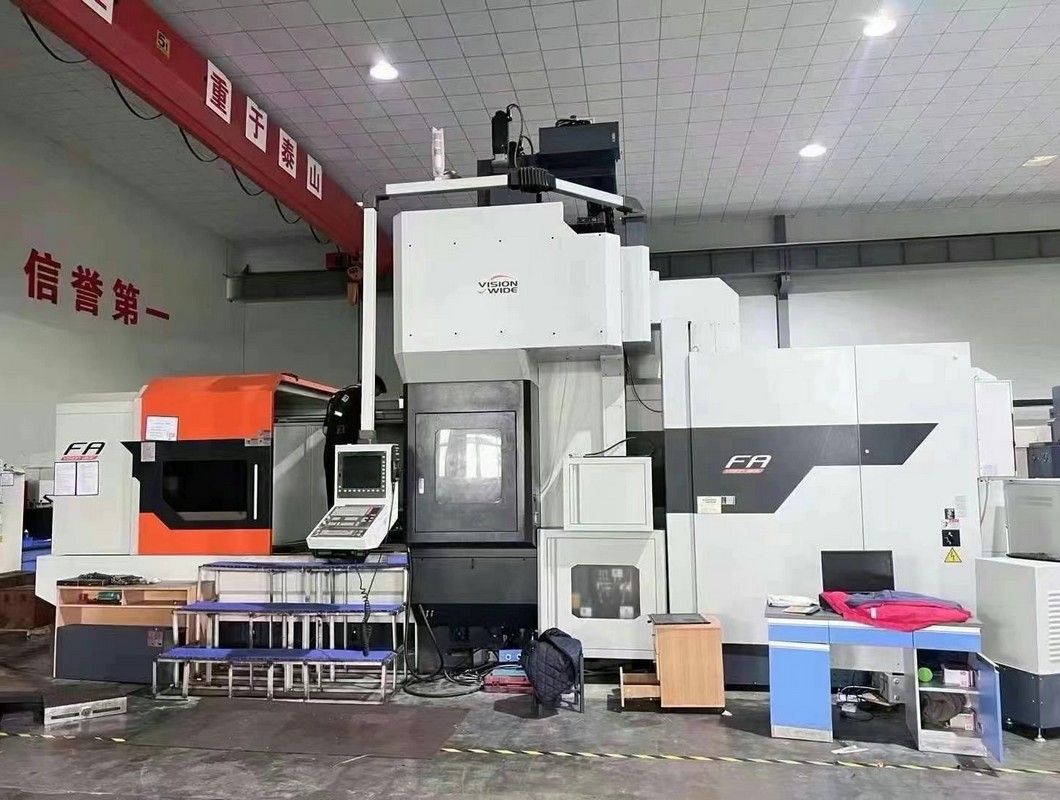

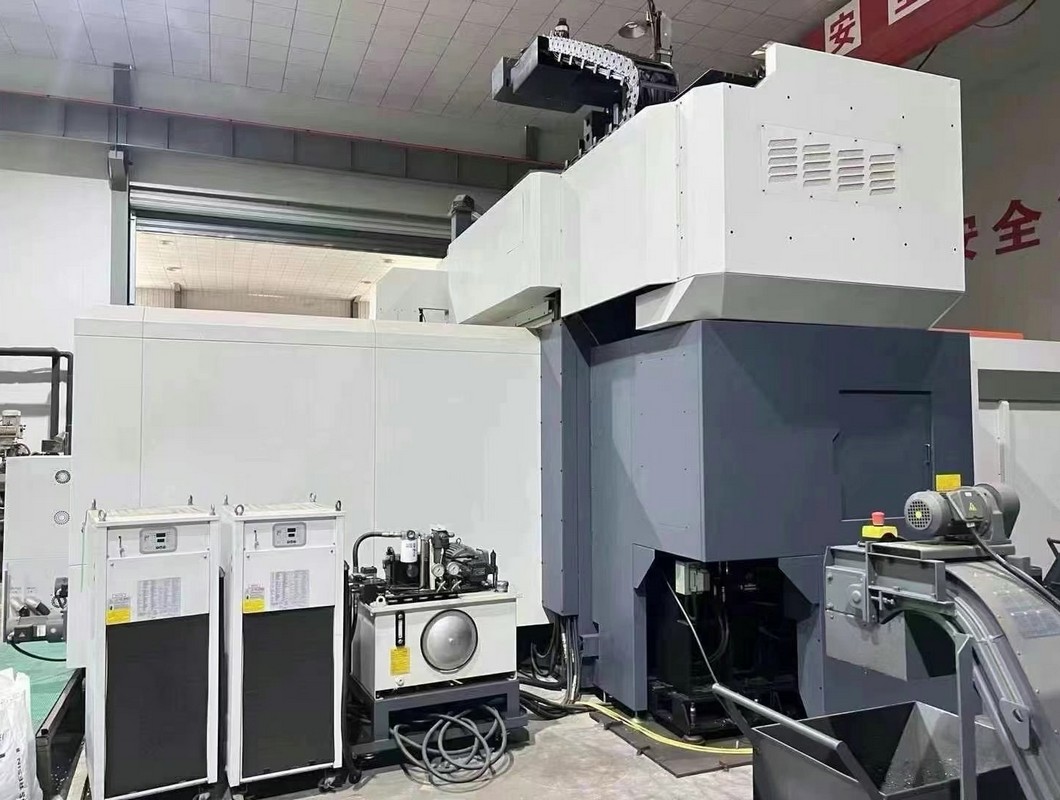

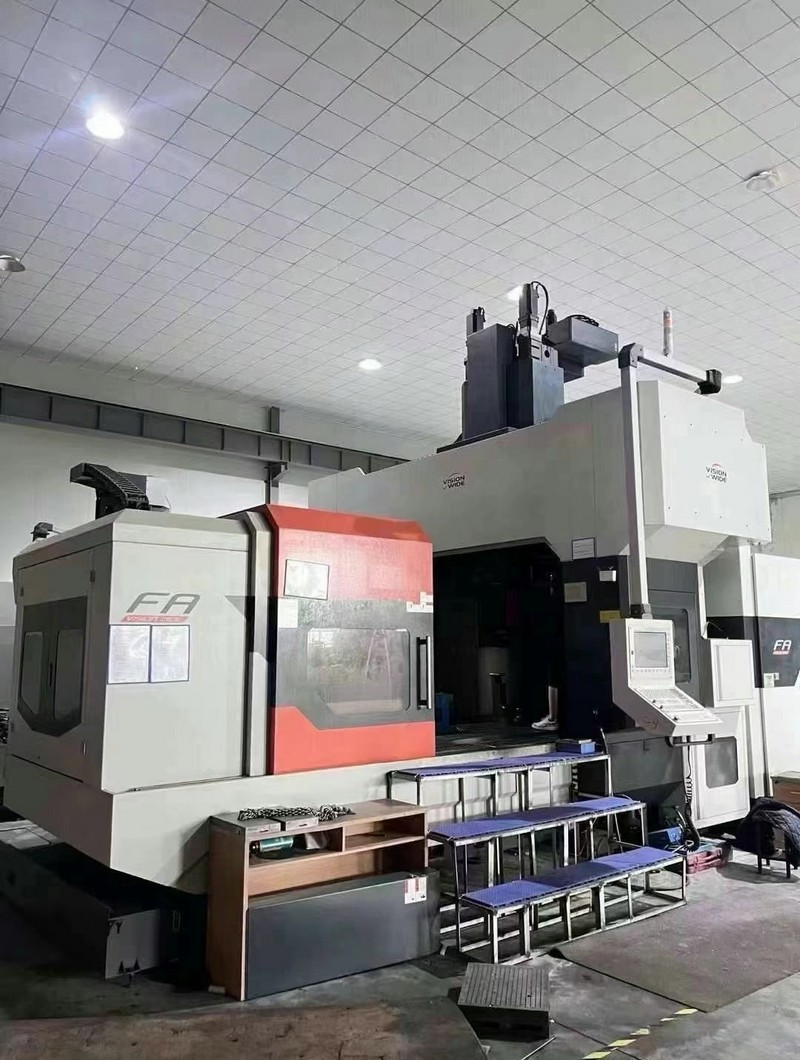

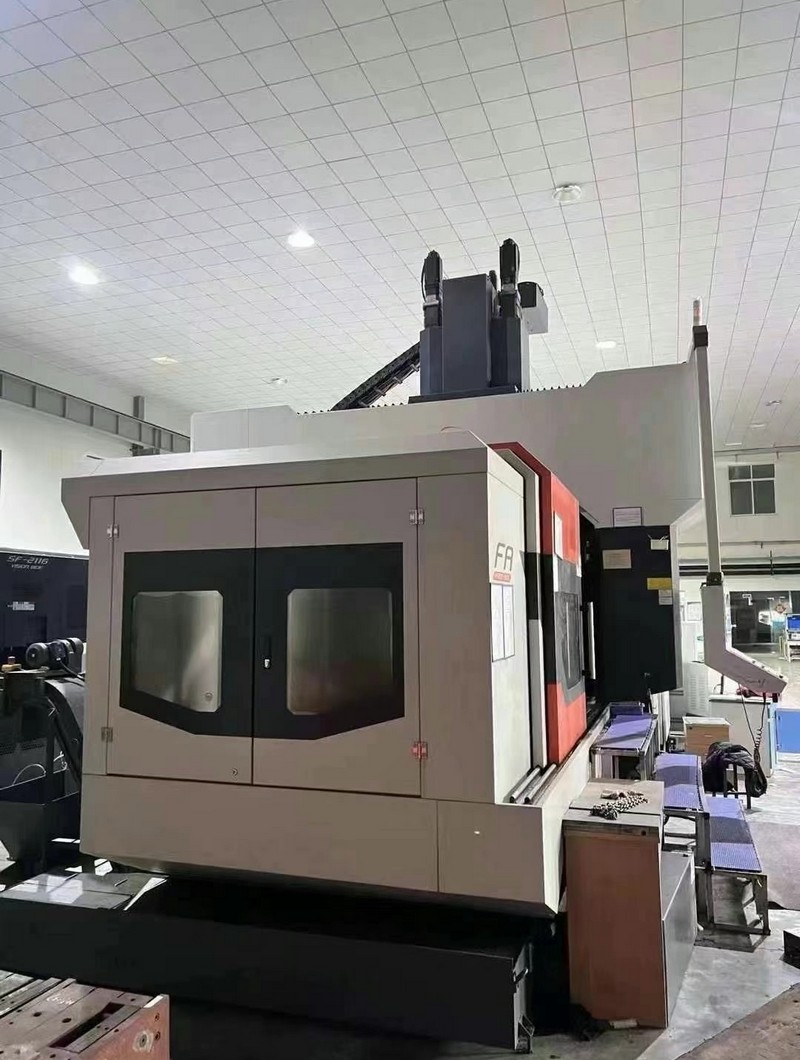

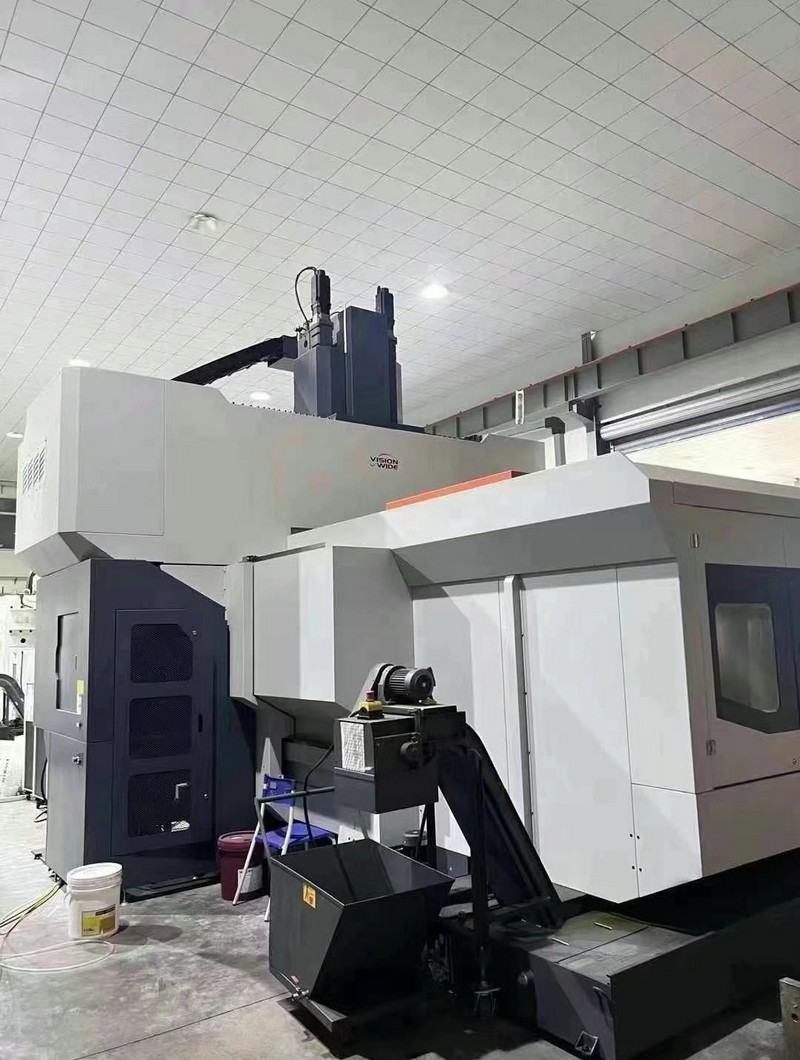

Qiao Weijin FA-3123 five-axis gantry machining center

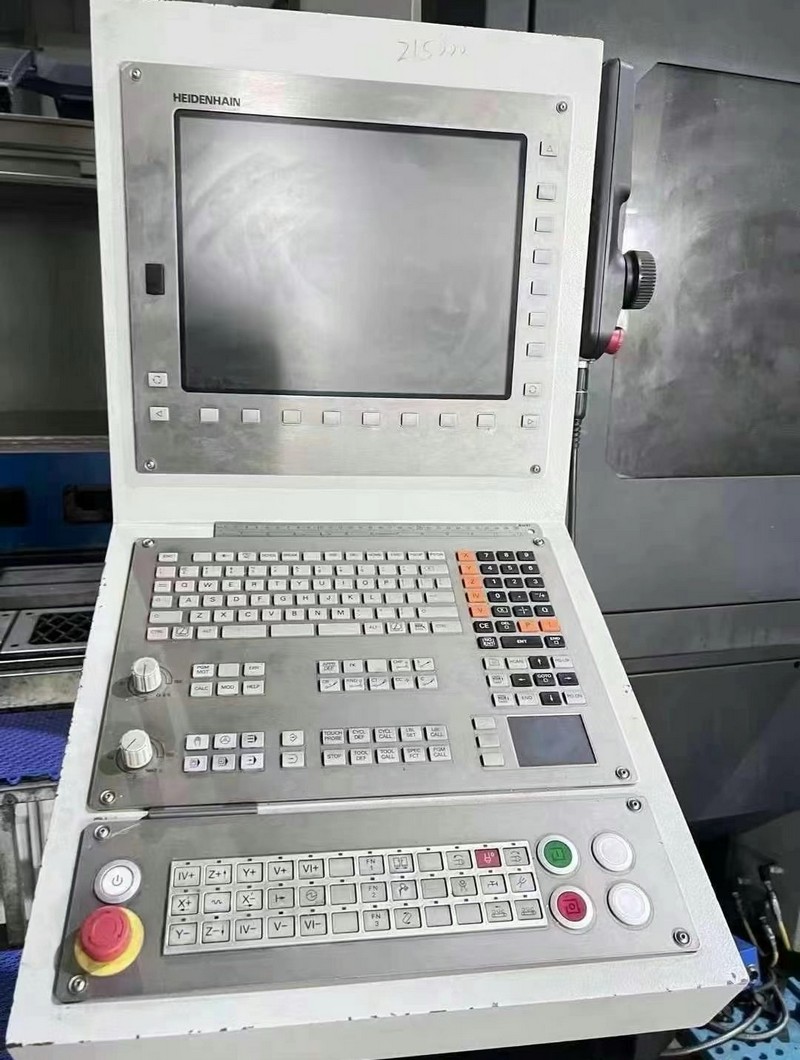

Heidenhain iTNC 640 controller
X-axis travel 3,100 mm
Y-axis travel 2,300 mm
Z-axis travel 1,000 mm
Spindle nose to worktable distance 155~1,155 mm
Distance between two columns 1,700 mm
Worktable size 3,000 x 1,500 mm
Maximum load of worktable 10,000 kg
Spindle motor 25 kW

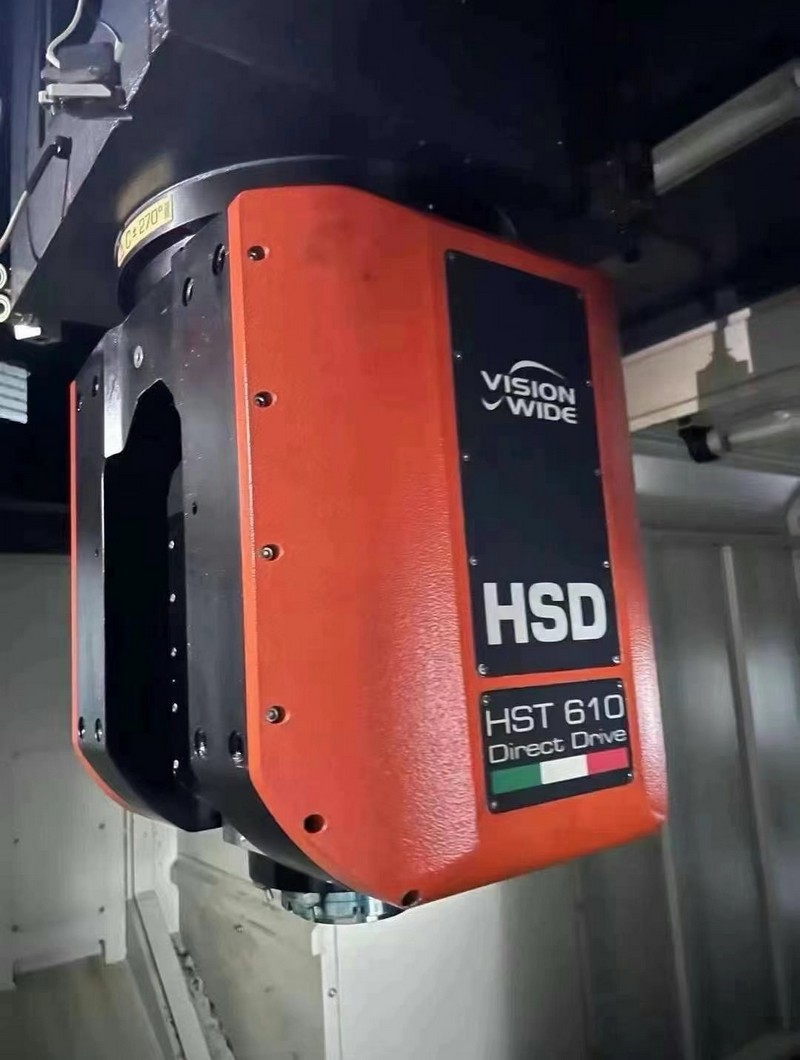

Spindle speed 24,000 rpm (HSD610)
Spindle inner taper HSK-A63
Rapid feed rate X, Y, Z axis X: 24 Y: 20 Z: 15 m/min
Cutting rate 10,000 mm/min
Tool magazine capacity (floor-mounted disc vertical) 24T
X, Y, Z axis equipped with Heidenhan optical ruler
Laser tool setting instrument, fully enclosed sheet metal cover (including top cover)
