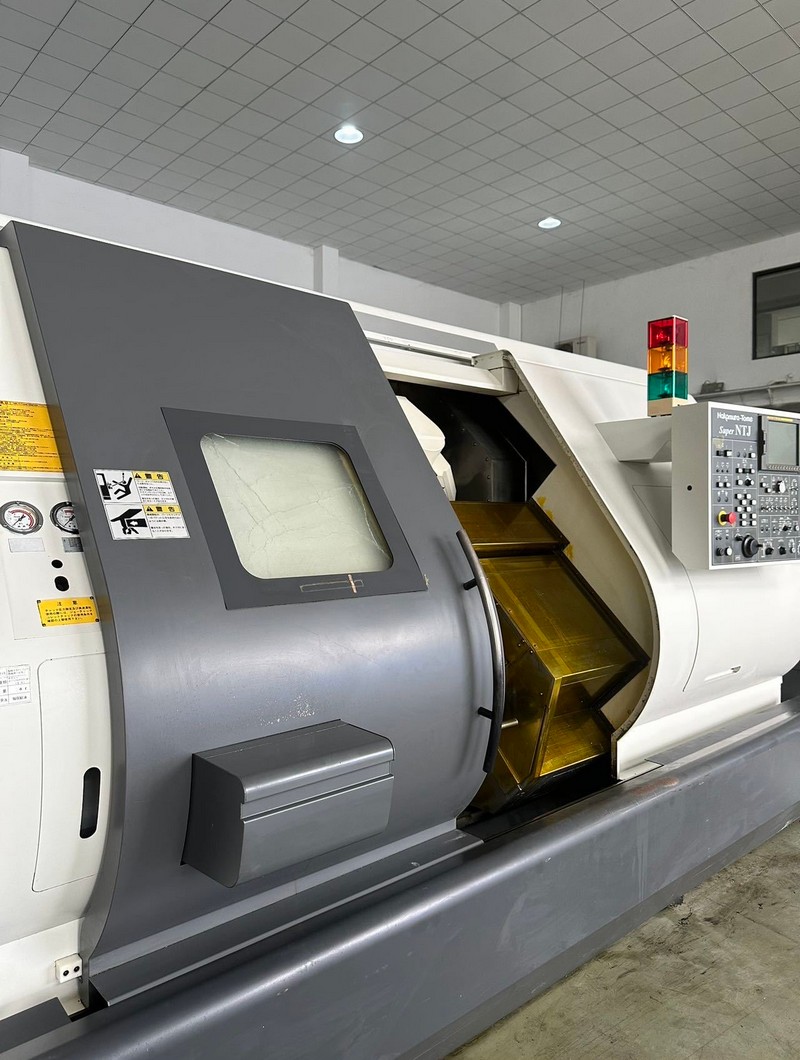

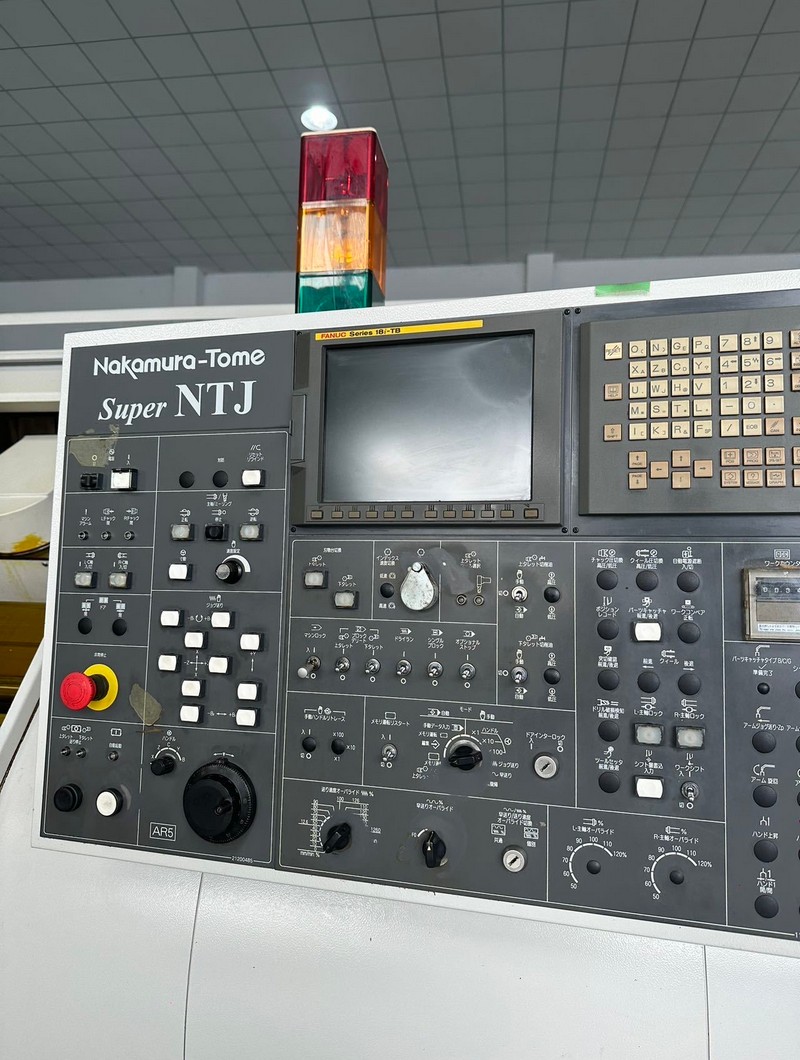

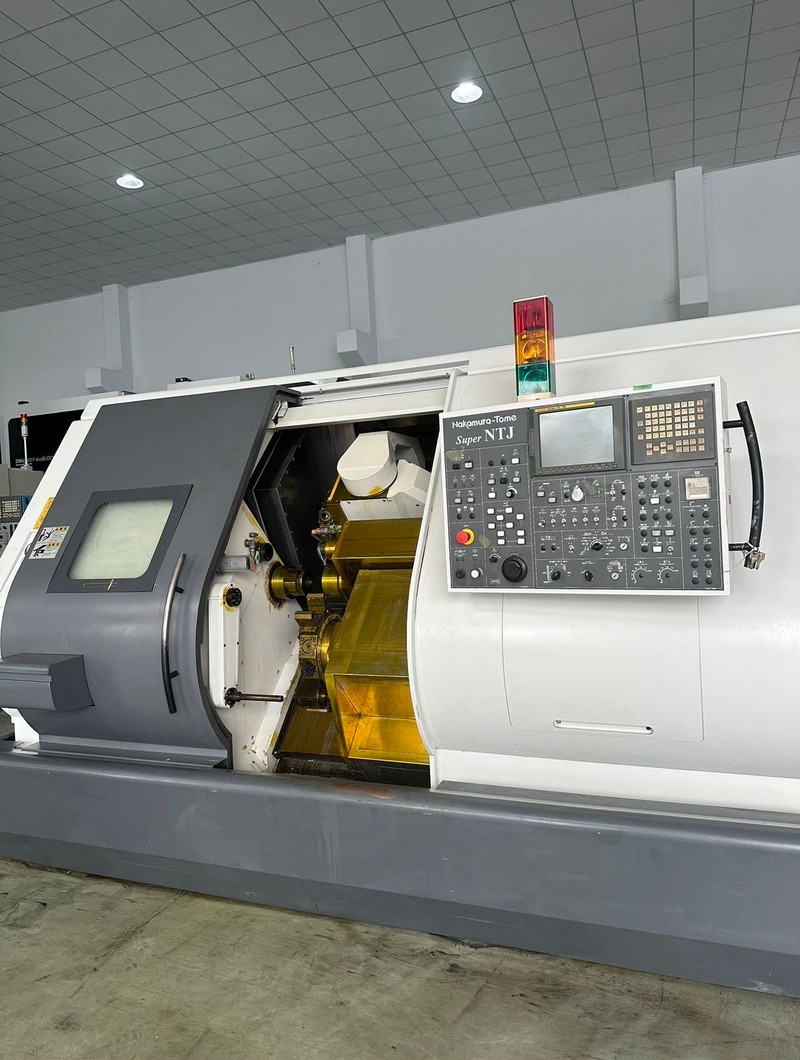

Nakamura Tome Super NTJ Milling Machine
Nakamura Tome Super NTJ Milling Machine
Maximum processing diameter: 190mm
Maximum processing length: 620mm
Spindle end distance: max.970mm/min.210mm
Bar capacity (round): 65mm 51mm(op.) 34mm(op.) on the left, 51mm 34mm(op.) on the right
Chuck size: 6″5″
Spindle speed: 4,500min-1 to 18,000min-1 on the left, 5,000min-1 on the right
Turret form/number of divisions: 12 turrets/24
B-axis cutting angle: 182°(±91°)
Y-axis movement (op.): upper turret 90mm(±45mm)
Features:

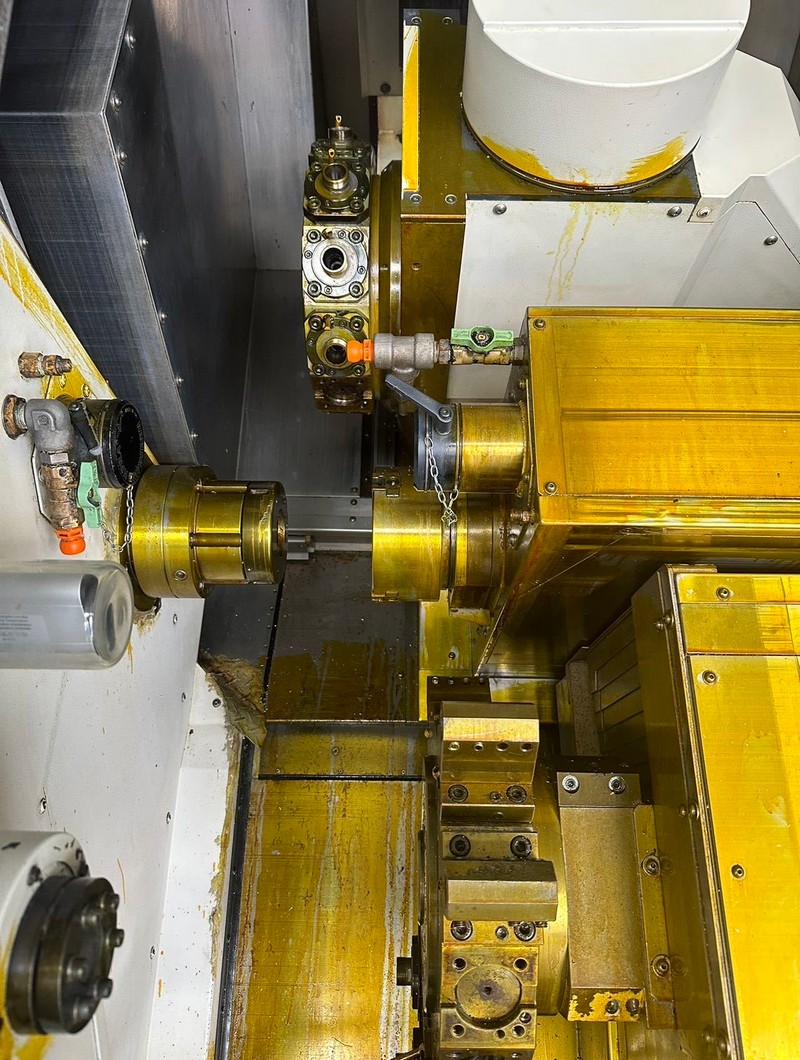

Super NTJ CNC machine has a dual-spindle dual-turret design, one of which can swing at an angle of 128 degrees, equivalent to the B-axis, which can rotate 182°.
Beveled holes, bevels, and any surfaces can be machined using standard tools.
