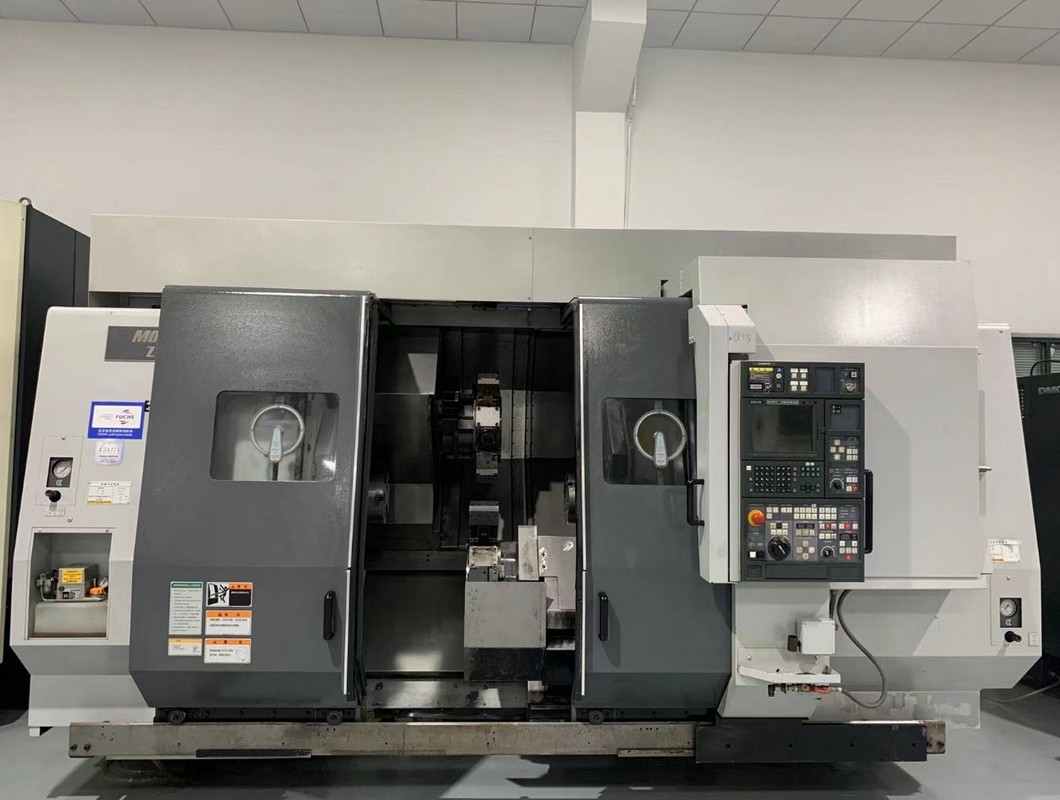

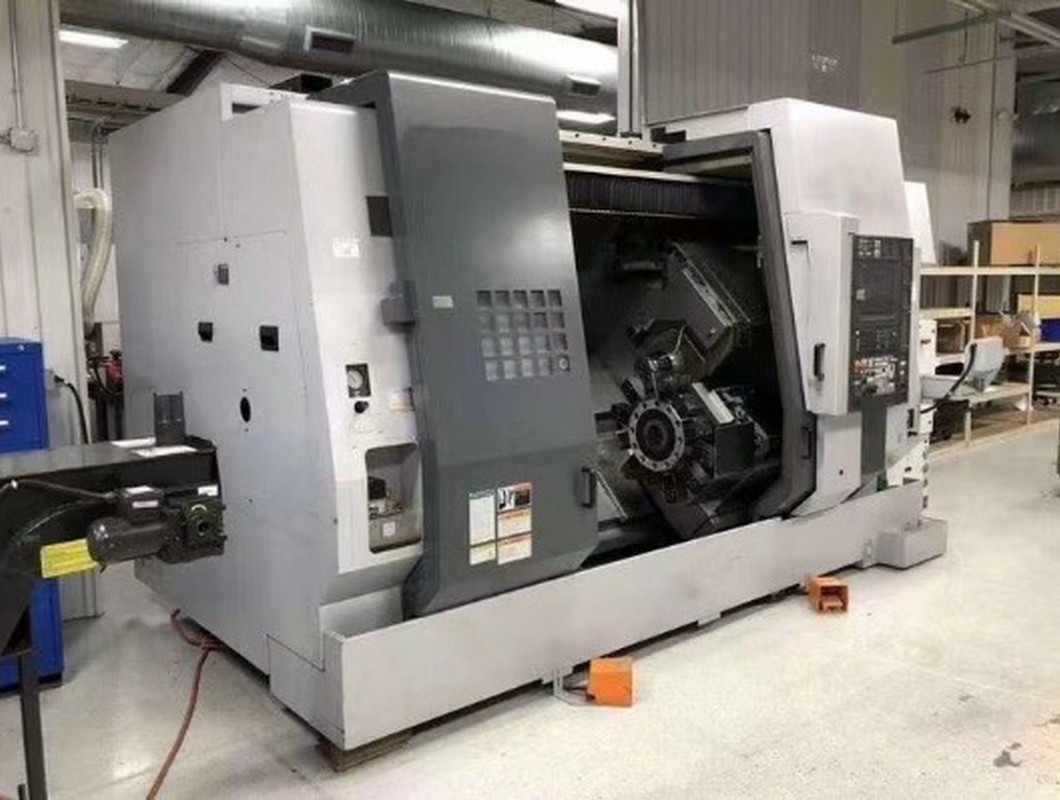

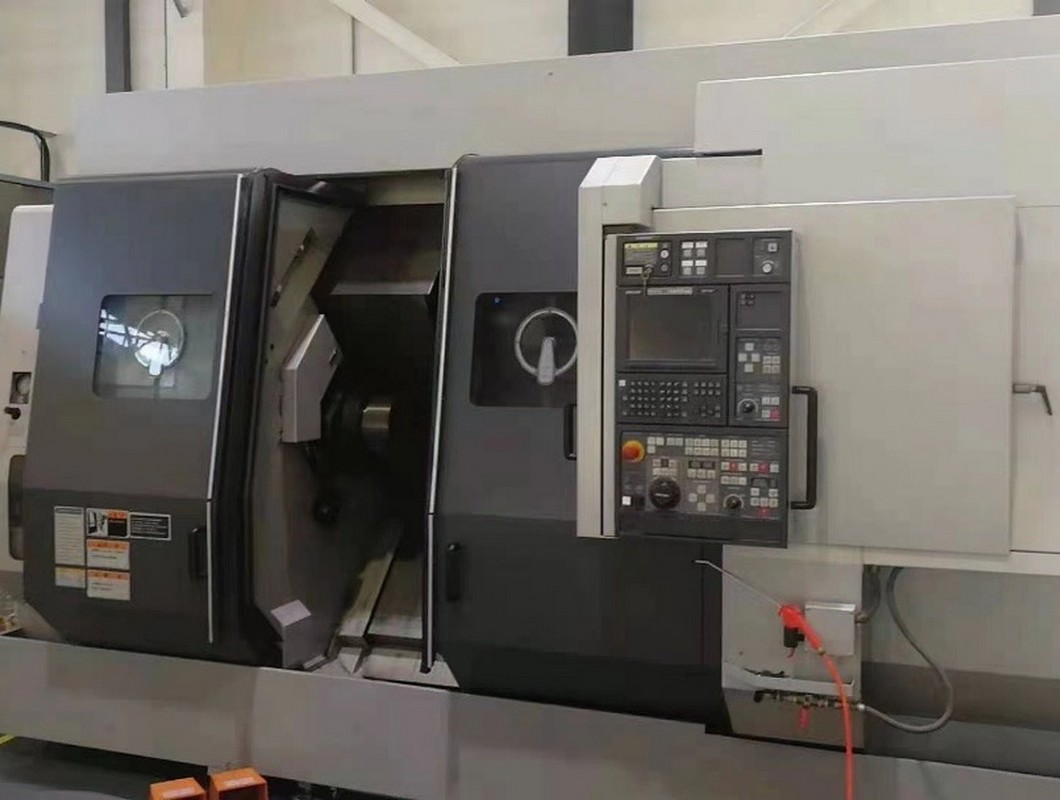

Morijing ZT2500 dual-spindle dual-tool CNC turret milling machine
Model: ZT2500
System: MSG501 (Fanuc 18iTT)
Origin: Japan
X-axis travel No. 1: 288mm X-axis travel No. 2: 200mm
Z-axis travel: 985mm C-axis 360 diameter: 10 feet
Y-axis travel No. 1: 140mm
Distance from spindle to worktable: 1230mm
Through hole: 73mm
Spindle 1 rotation diameter: 390mm Spindle 2 rotation diameter: 360mm
Spindle drive mode: electric spindle

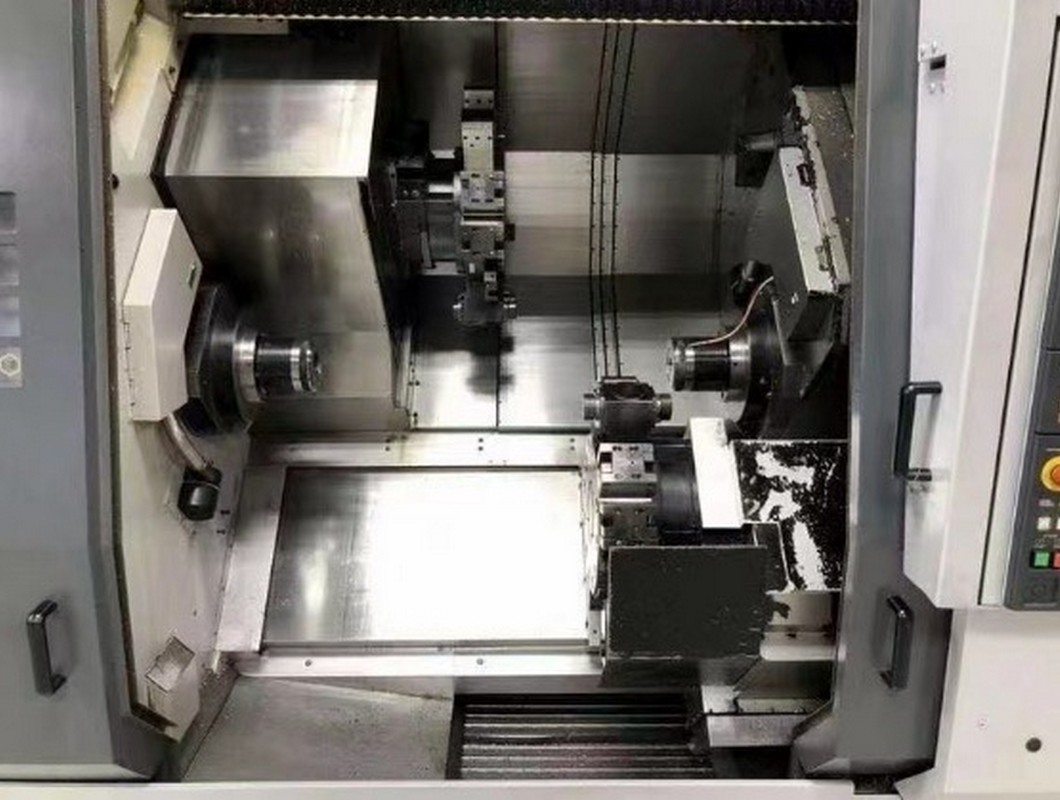

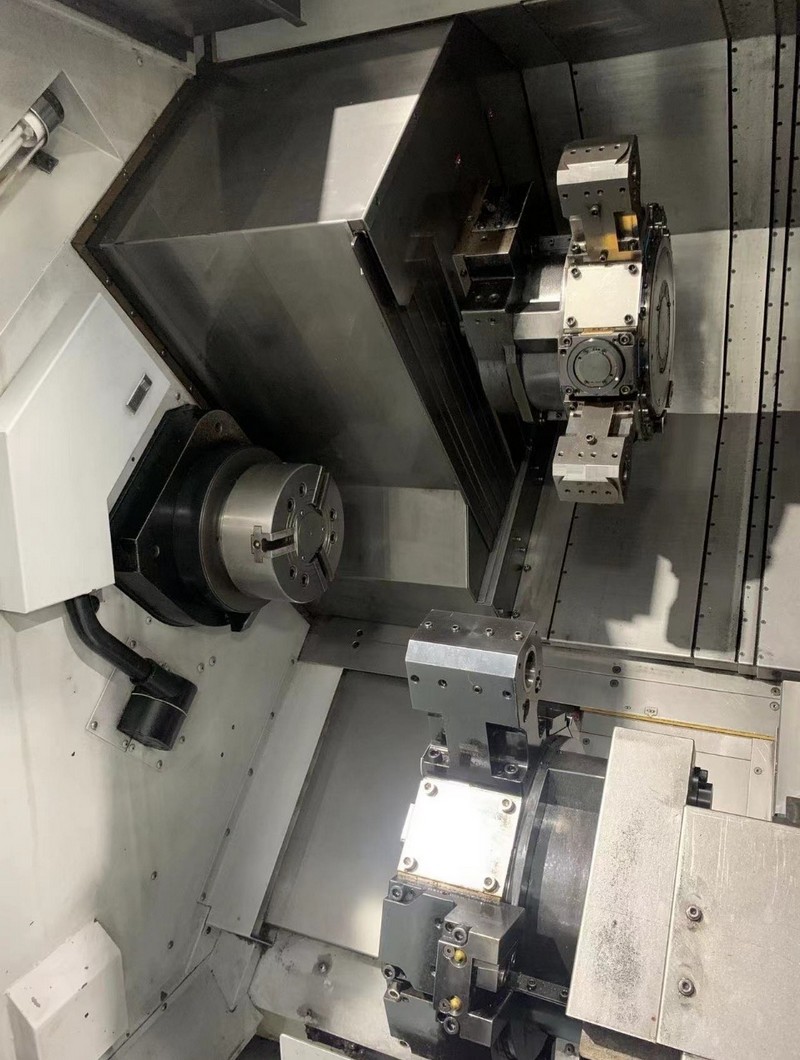

Turret tool magazine
Upper turret: 12 stations Lower turret: 12 stations
Chuck: 10 inches Maximum turning length: 350mm
Guide rail mode: hard rail
Each axis drive mode: screw rod
Chip removal method: Chain type
Machine tool mechanism: horizontal lathe
