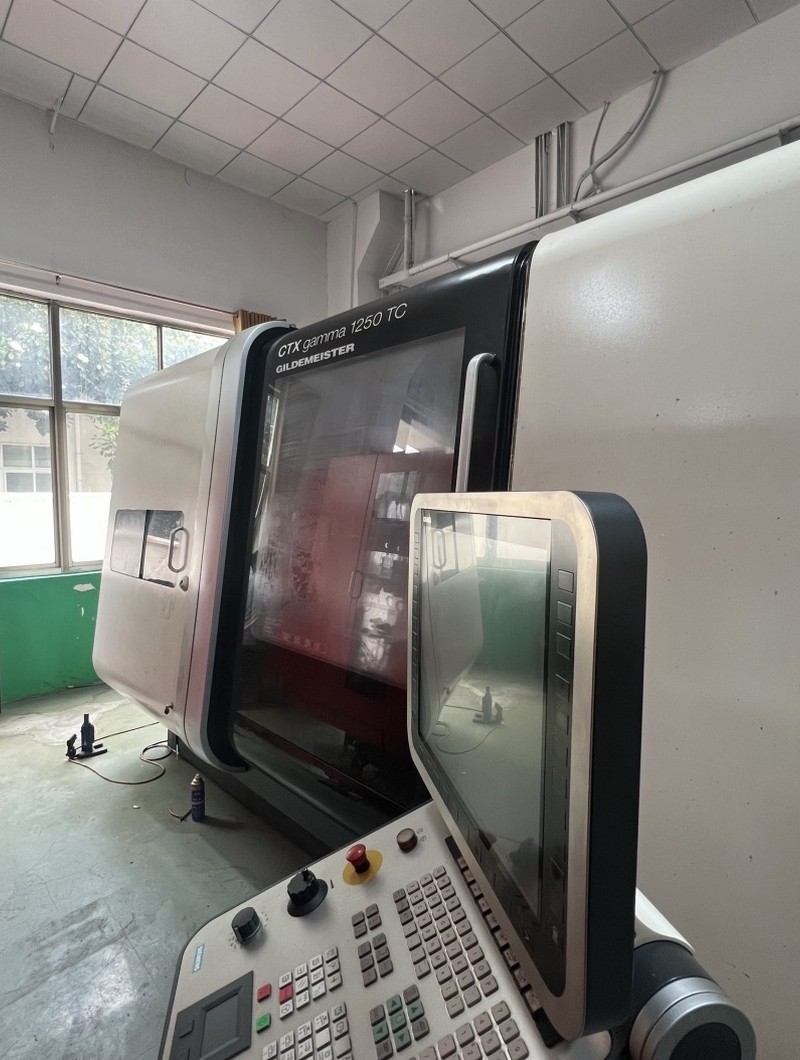

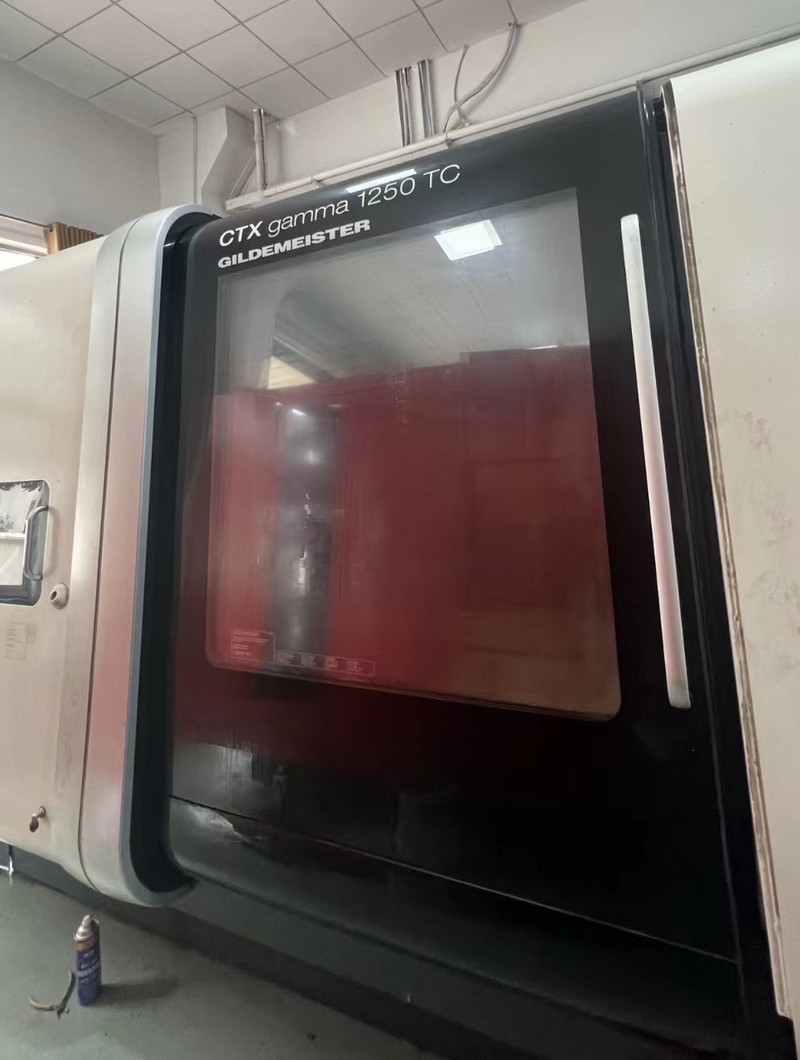

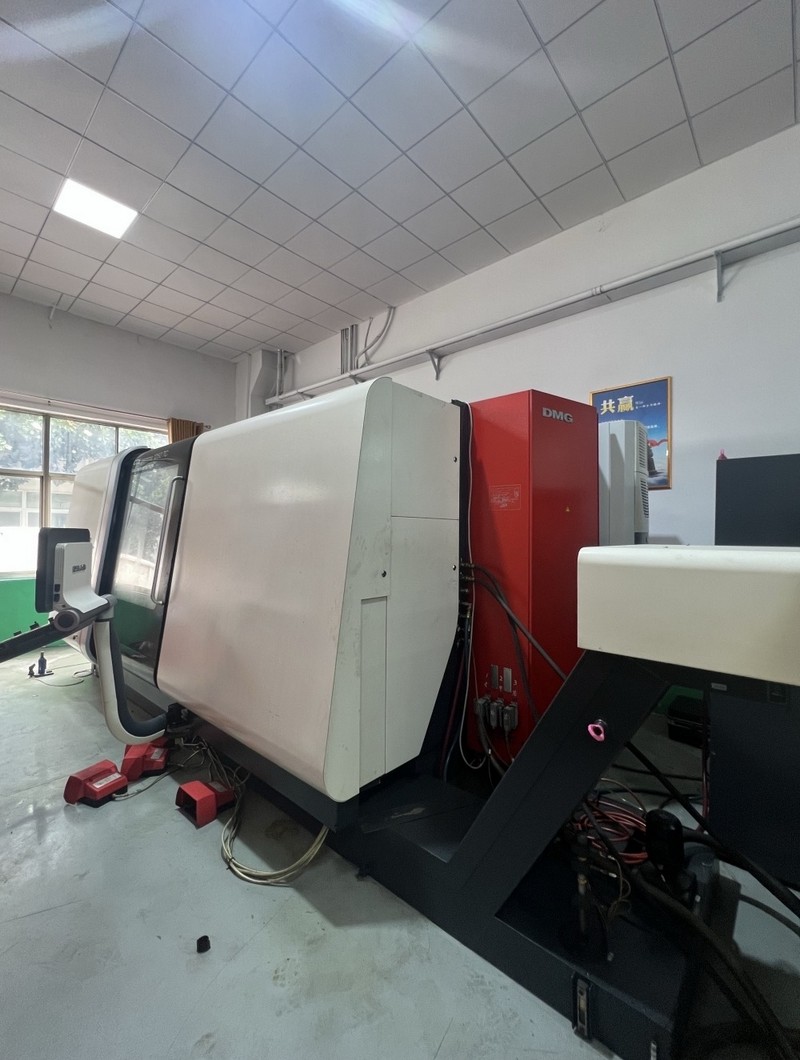

DMG GTX Gamma 1250TC milling machine
Model: Gamma 1250TC
Maximum travel of X axis: 800mm Maximum travel of Y axis: 420mm Maximum travel of Z axis: 1300mm (with C axis 0.001°)
Worktable area: 1250*700mm
Maximum workpiece diameter: 700mm Maximum workpiece length: 1250mm
Maximum rotation diameter mm 700
Spindle (standard) ISM 102
Maximum turning diameter (disc or chain tool magazine) mm 630/700
Distance from spindle to tailstock (without chuck) mm 1,177.5
Maximum workpiece length with tailstock (machinable length) mm 1,160
Distance from spindle to sub-spindle (without chuck) mm 1,510
Maximum workpiece length of sub-spindle (machinable length) mm 1,300
Electric spindle (ISM) with C axis (0.001°) rpm 5,000
