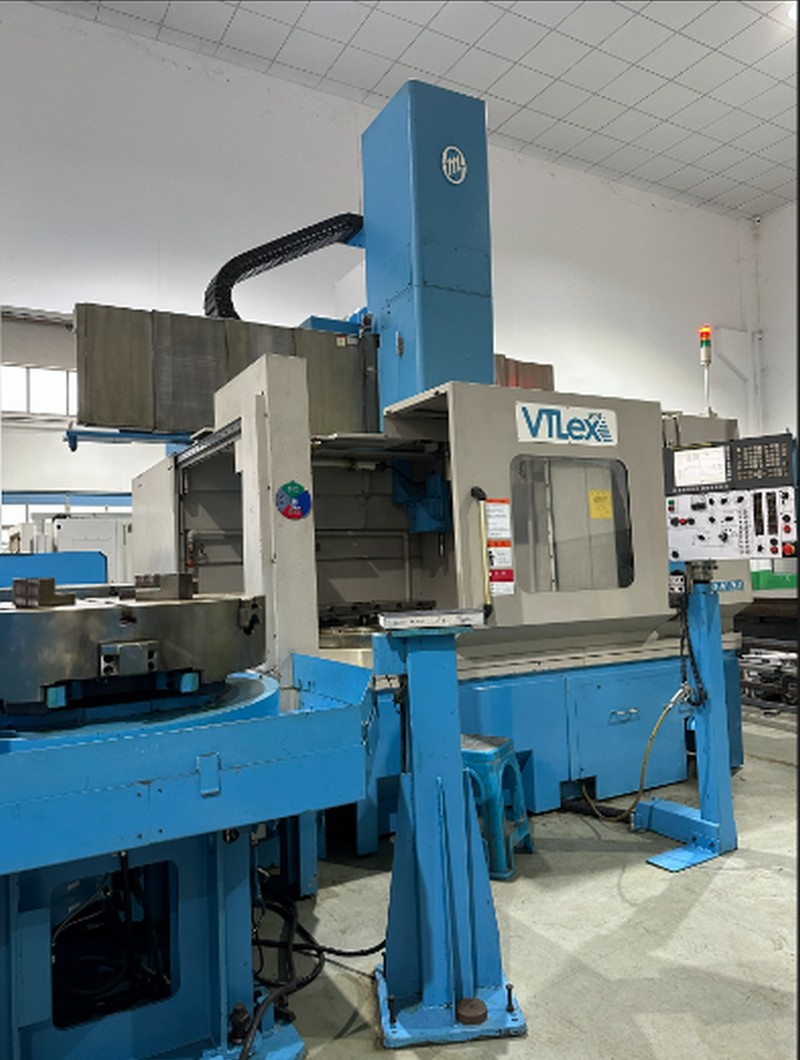

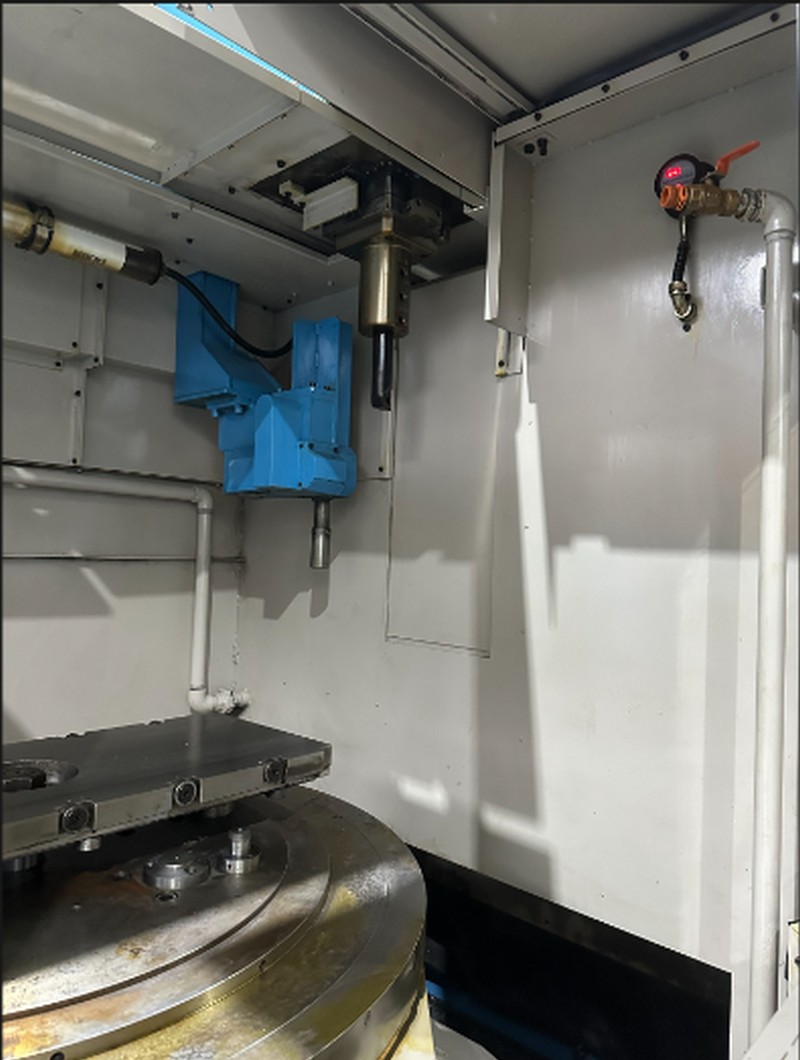

OM VTLex915 vertical turning center

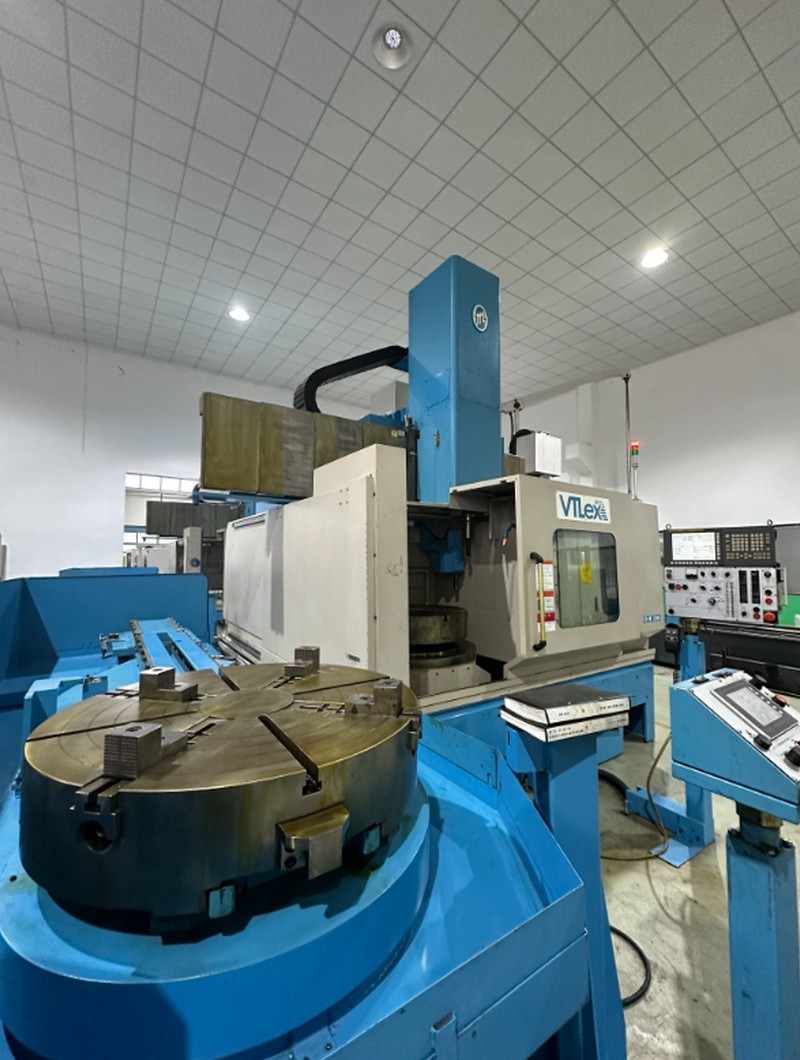

Dual table exchange
Model: VTLex915
Origin: Japan

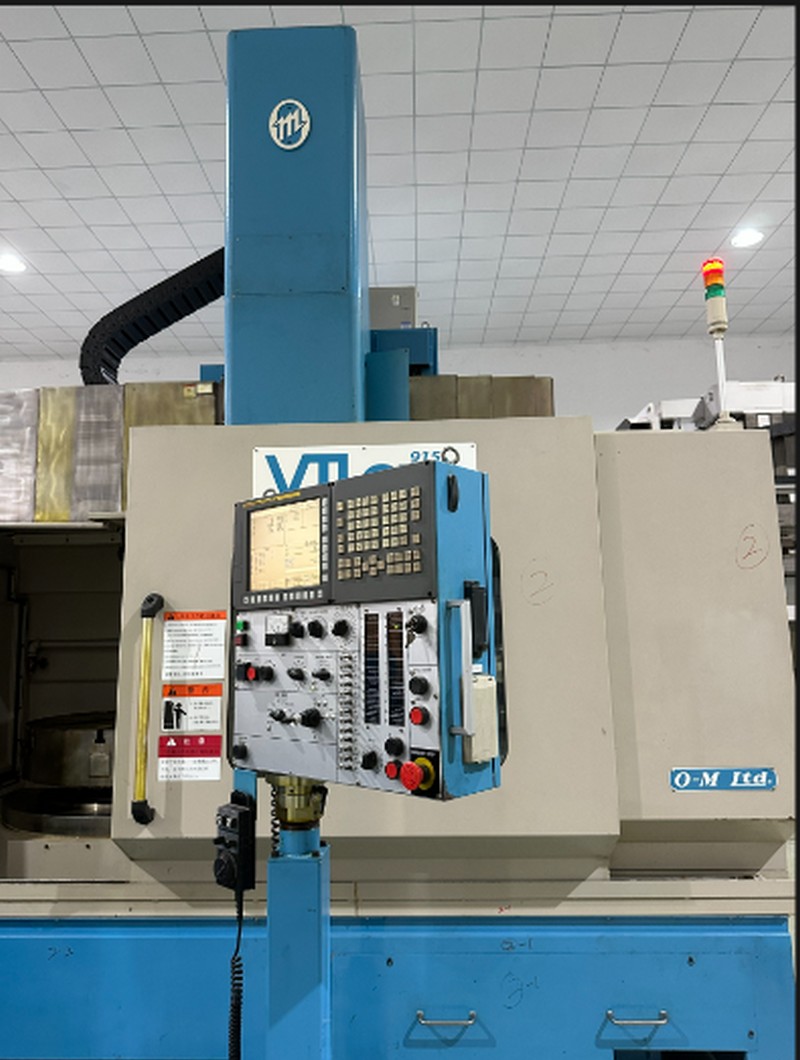

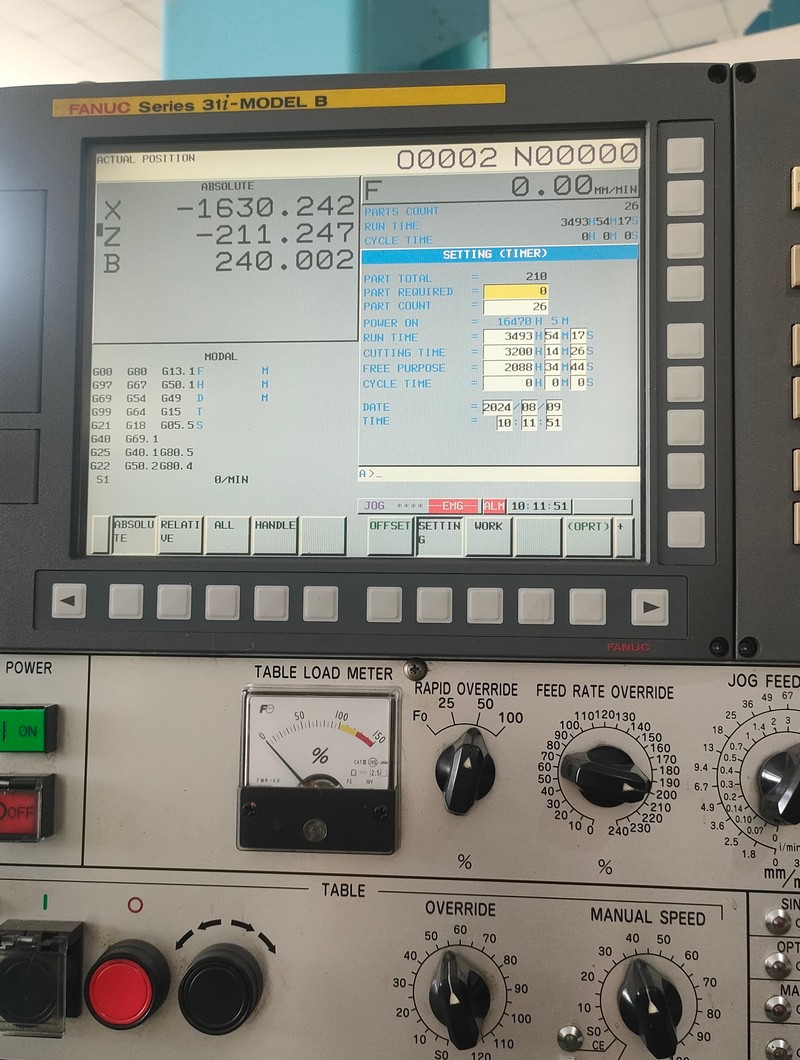

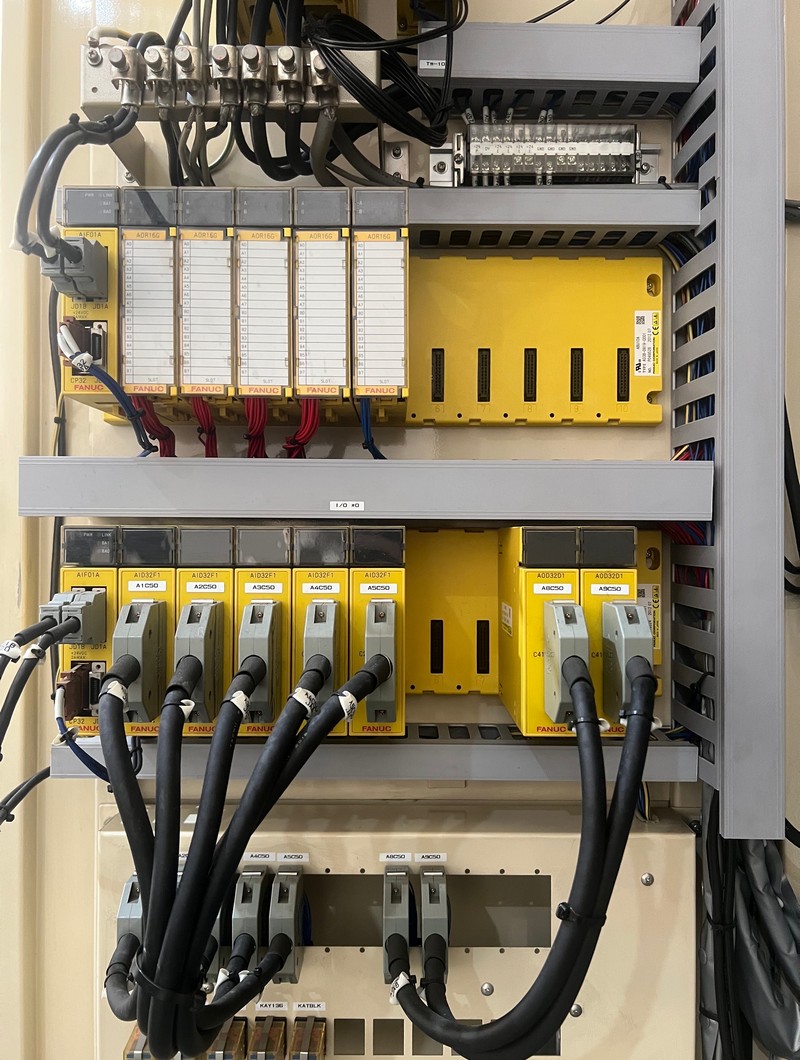

CNC system: FANUC 31i
X-axis travel: 1015mm to the right, 50mm to the left
Z-axis travel: 800 mm
Full axis grating scale
Each axis drive mode: screw
Table diameter: mm 915. Table load: 1500 Kg
Maximum rotation diameter: 1250mm
Maximum turning outer diameter: 1000 mm
Maximum processing height: 800 mm
Maximum rotation torque: 5370 Nm
Maximum turning force: 25000 N
Spindle drive mode: belt drive
Machine tool structure: vertical lathe

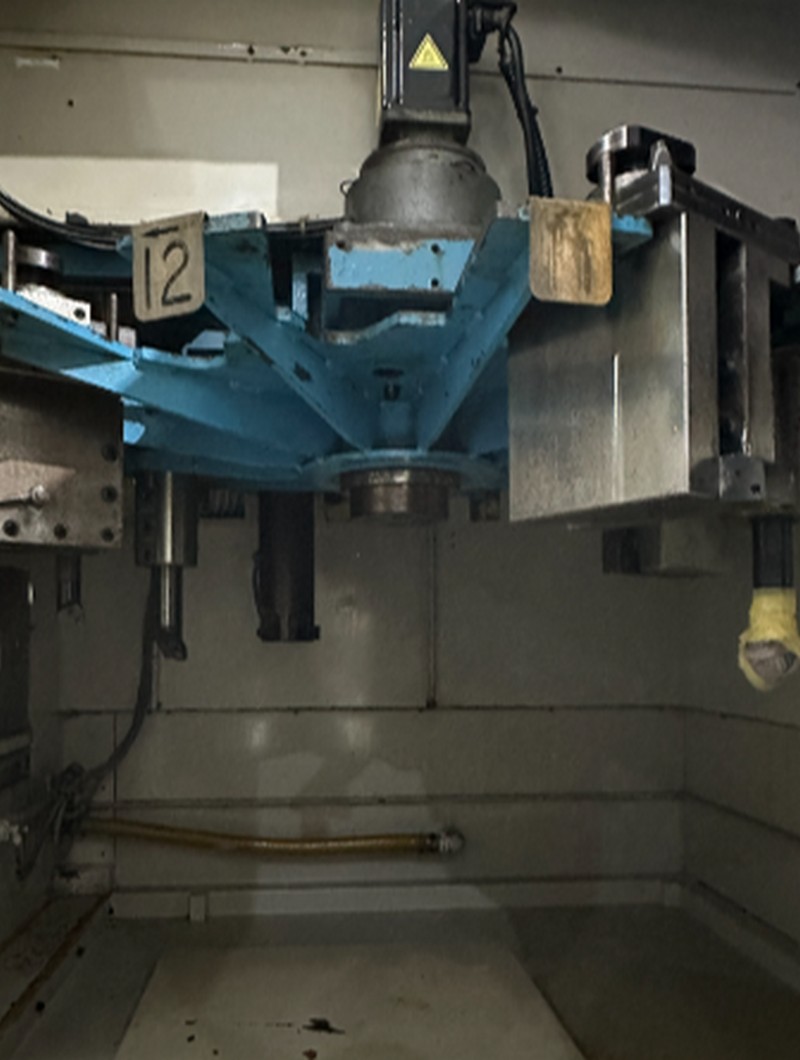

ATC tool magazine capacity: 12
Tool magazine form: disc tool magazine
Guide rail method: hard rail
Overall dimensions: 5200*6000**4000 (mm) Contact us
