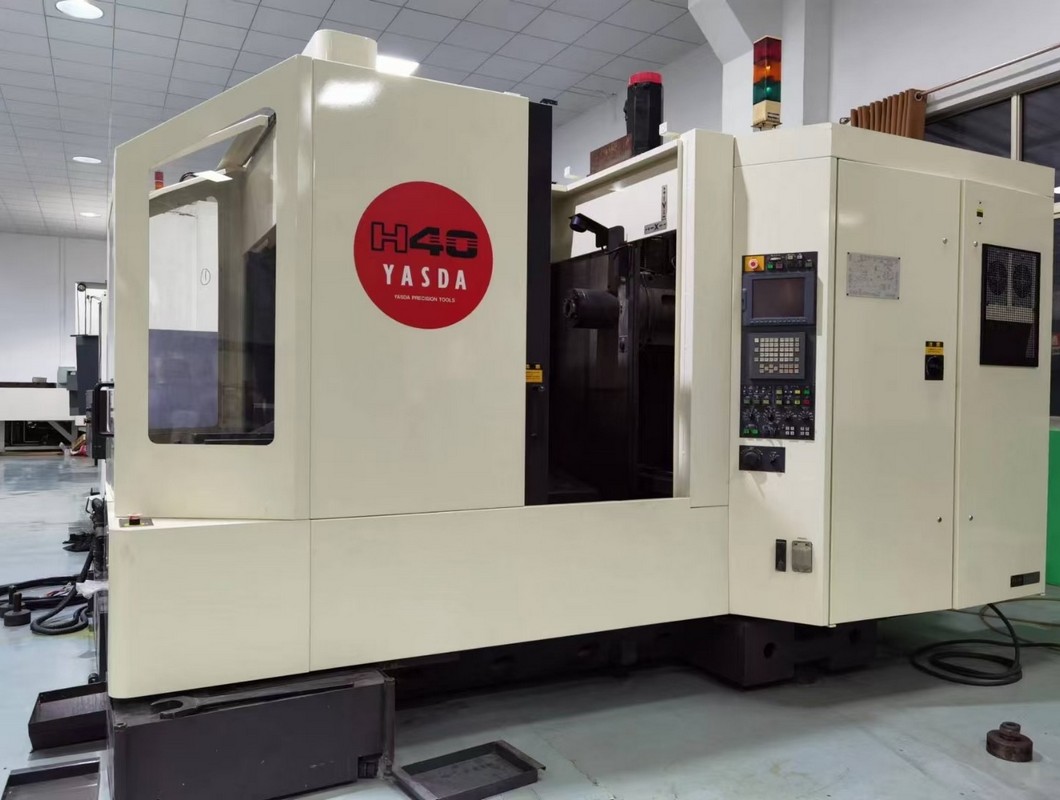

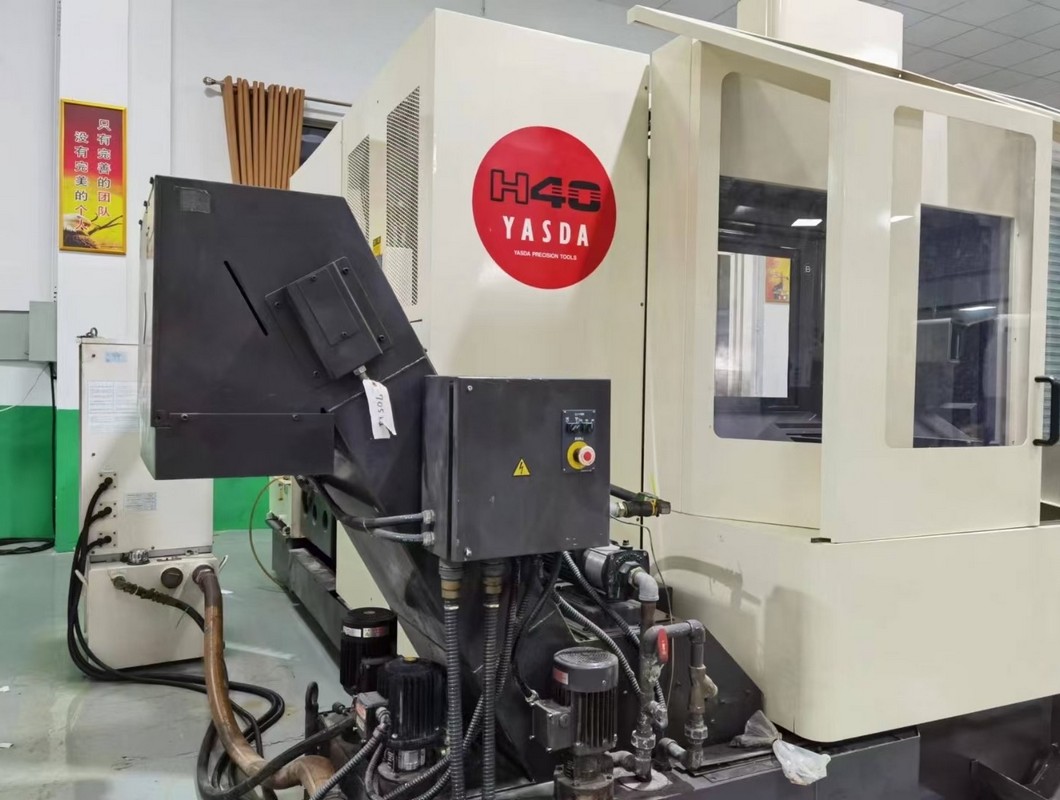

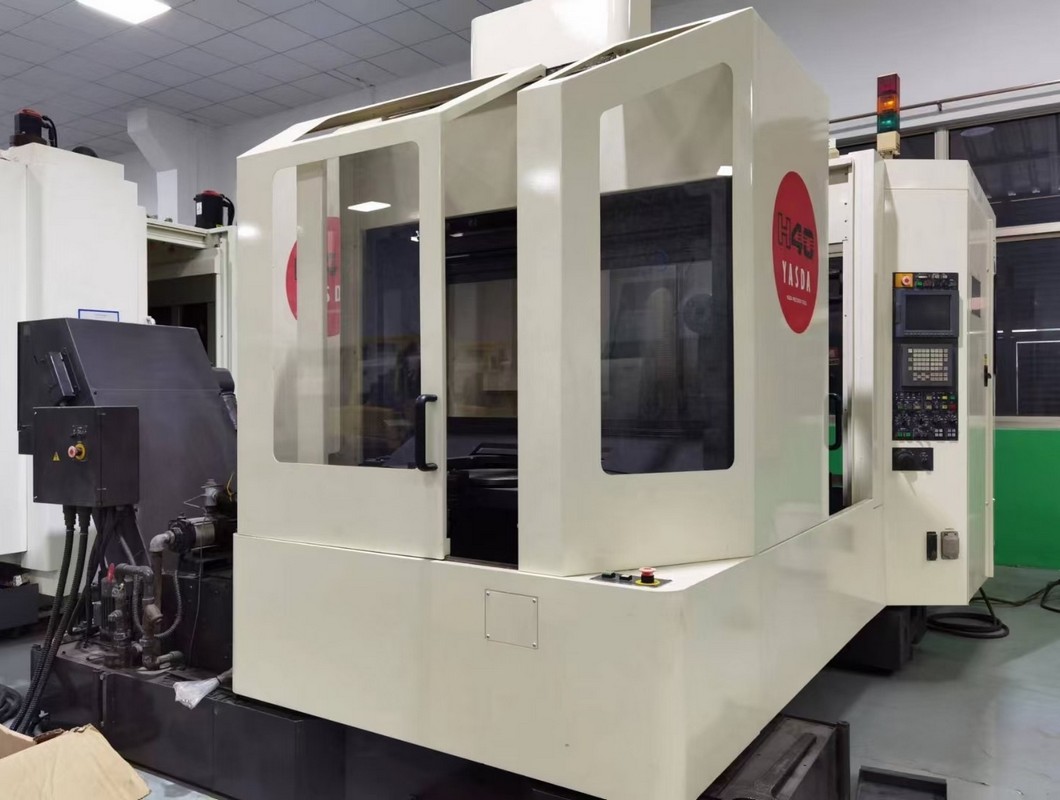

YASDA H40 double-table horizontal machining center
Model: H40
Origin: Japan
System: FANUC 16I
X/Y/Z travel: 650*560*560mm B axis: 360 degrees
Table size: 400*400mm
Number of worktables: 2pcs
Worktable load-bearing capacity: 400KG
Distance from spindle to worktable: 90-650mm
With contact tool setting instrument, full-axis grating ruler
Each axis drive mode: screw rod Chip removal mode: spiral type
Spindle transmission mode: electric spindle
Tool magazine quantity/model/form: 60 pieces / BT40 / chain tool magazine
Guide rail method: Linear rail
Maximum rotation diameter: 600mm
Division: 0.001
Spindle speed: 12000 rpm
Tool holder: BBT40
Number of tool magazines: 60
