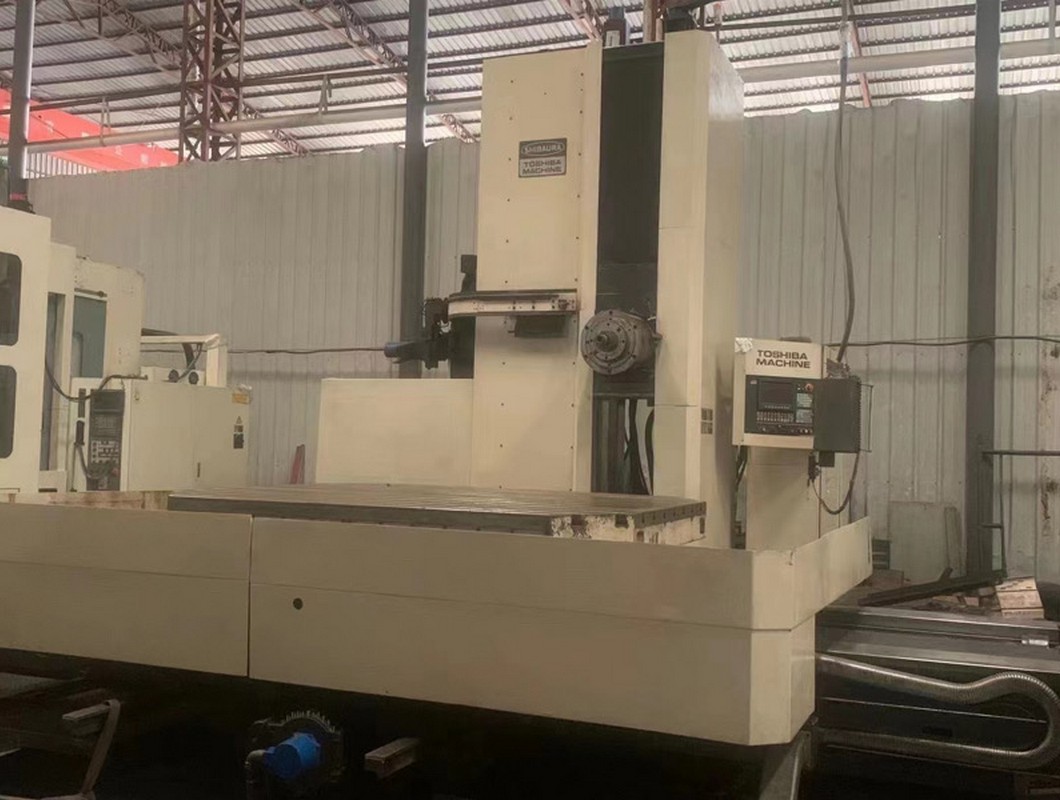

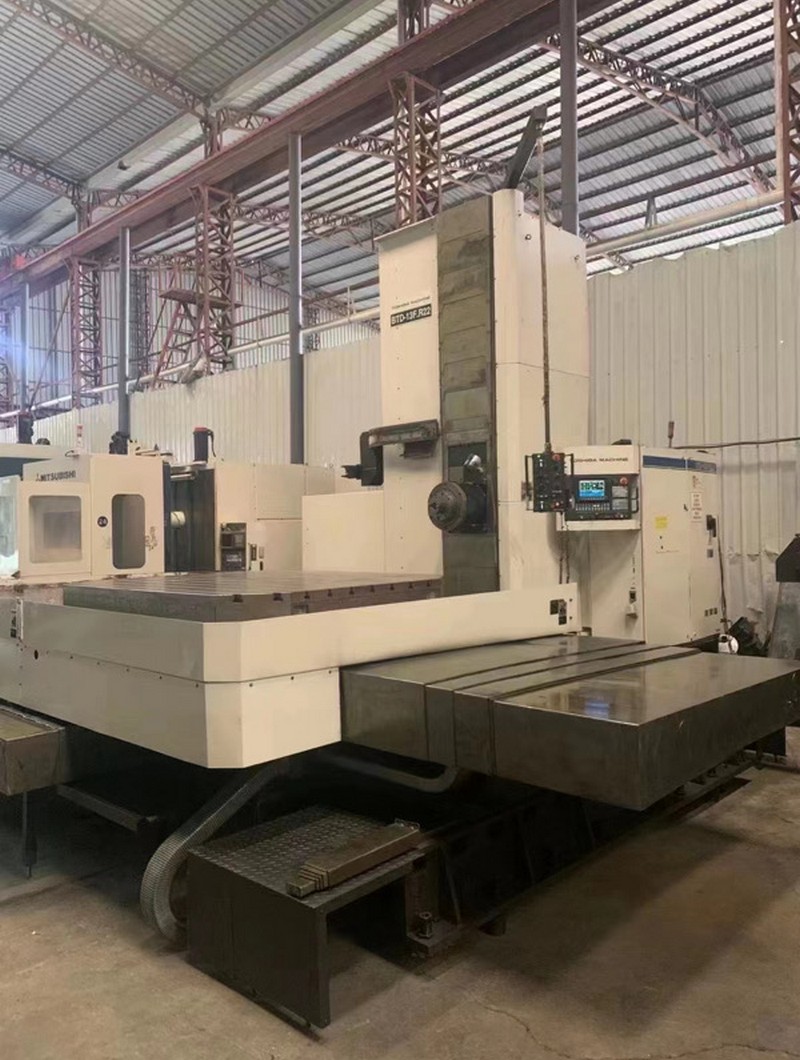

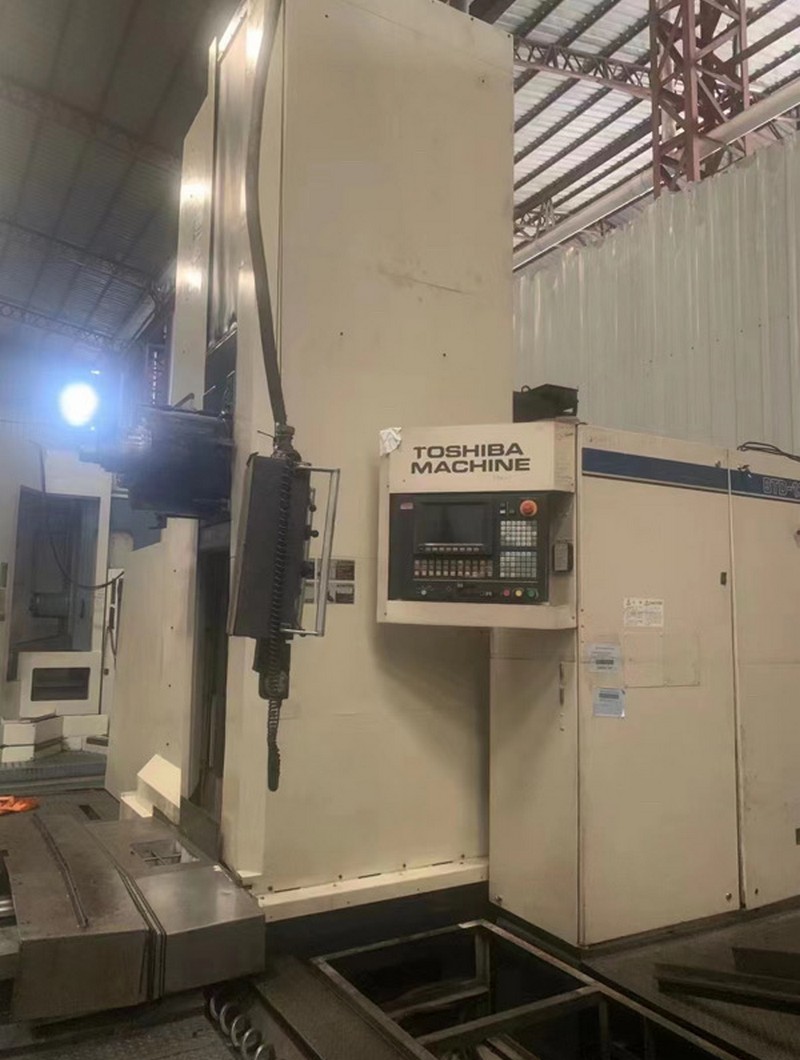

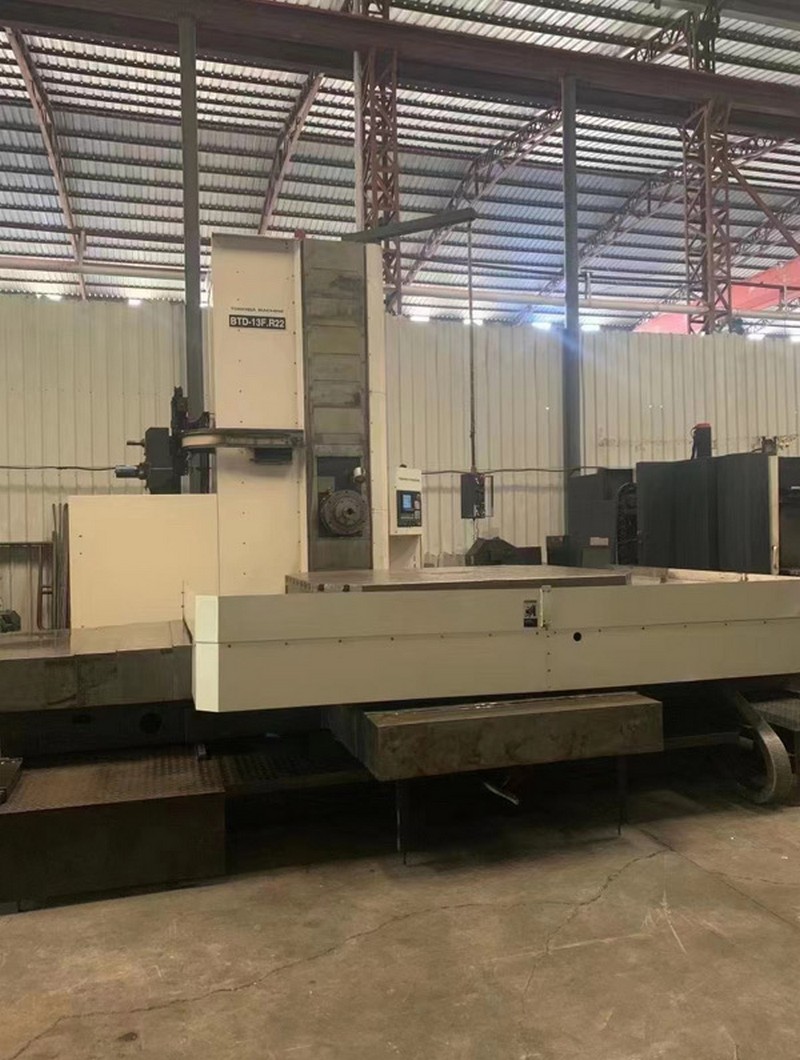

Japan Toshiba BTD-13FR22 horizontal boring and milling machine
2. Travel: X axis * Y axis * Z axis 3000 *
3. 2300 * 1600
4. W axis 700mm

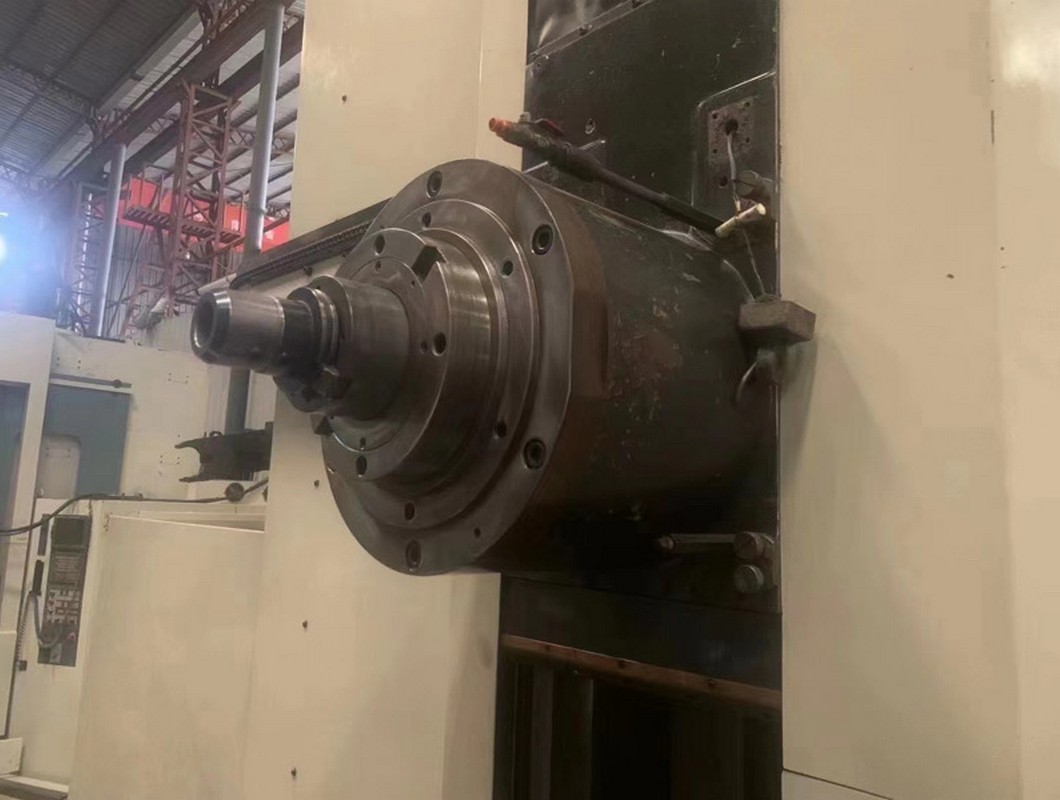

5. Spindle diameter 130 mm
6. Spindle speed range 5-2500 rpm
7. Milling cutter head diameter 225mm
8. Spindle taper type 7/24 taper 50
9. Spindle drive motor 30 kW AC (30 minutes)
10. 22 kW AC (continued)
11. Worktable working surface 1800x2200 mm
12. Table load 20000 Kg
13. Minimum worktable indexing angle 0.001 degree
14. Feed speed:
15. X, Z: 1-3000 mm/min.
16. Y: 1-4000 mm/min.
17. Tool magazine 38
18. Equipped with:
19. Coolant through spindle 140 PSI
20. Table load 20 tons (44,000 p Contact us
