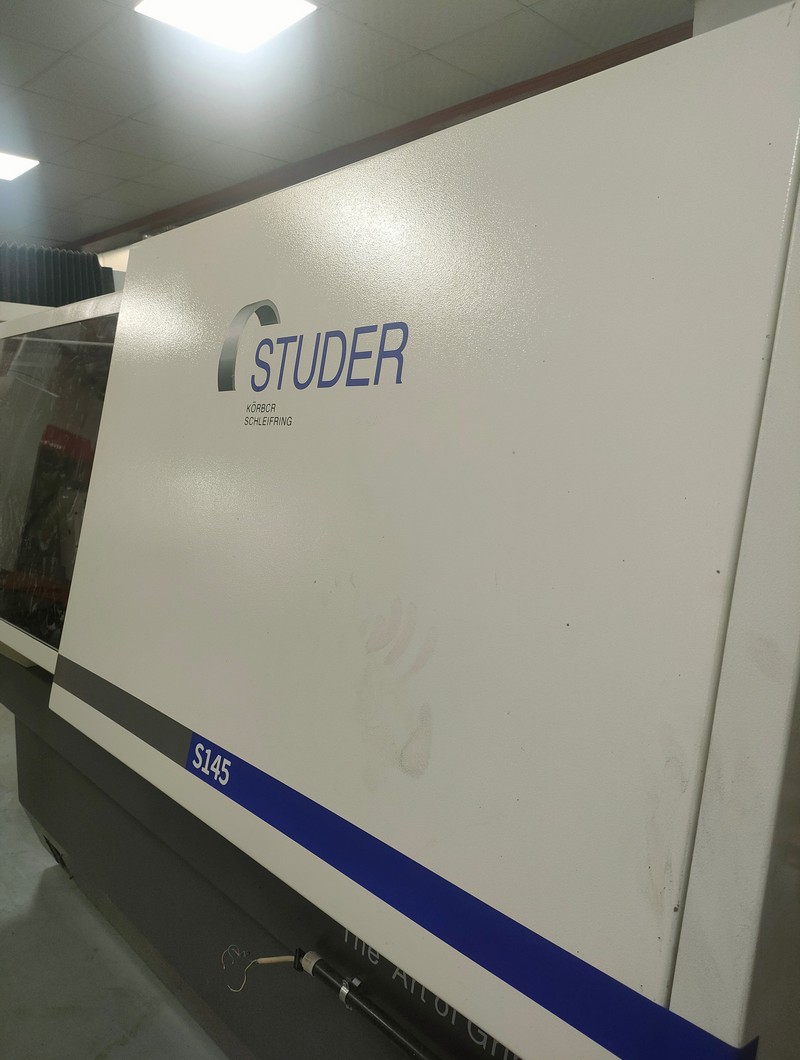

STUDER S145 internal and external cylindrical grinding machine
Model: S145
System: FANUC 16-TB
Origin: Switzerland
Grinding length: 200 [mm]
- Center height: 225 [mm]
Slide:
- Stroke (X/Z): 129 x 510 [mm]
- Feed (X/Z): 5.000 / 10.000 [mm/min]
Rotating grinding wheel head:
- B axis CNC: 360 [°]
- Orientation positions: 0 / 90 / 180 / 270 [°]
- Inner grinding wheel diameter: 120 [mm]
Workpiece head:
- Spindle hole: 50 [mm]
- Rotation speed: 0 - 1.000 [Rpm]
- Power: 3 [kW]
- Spindle box rotation via Q axis: +/- 30 [°]
- Spindle indexing via C-axis: 360 ° (non-circular grinding possible, Capto toolholders possible)
C-axis for profile and thread grinding (optional Contact us
