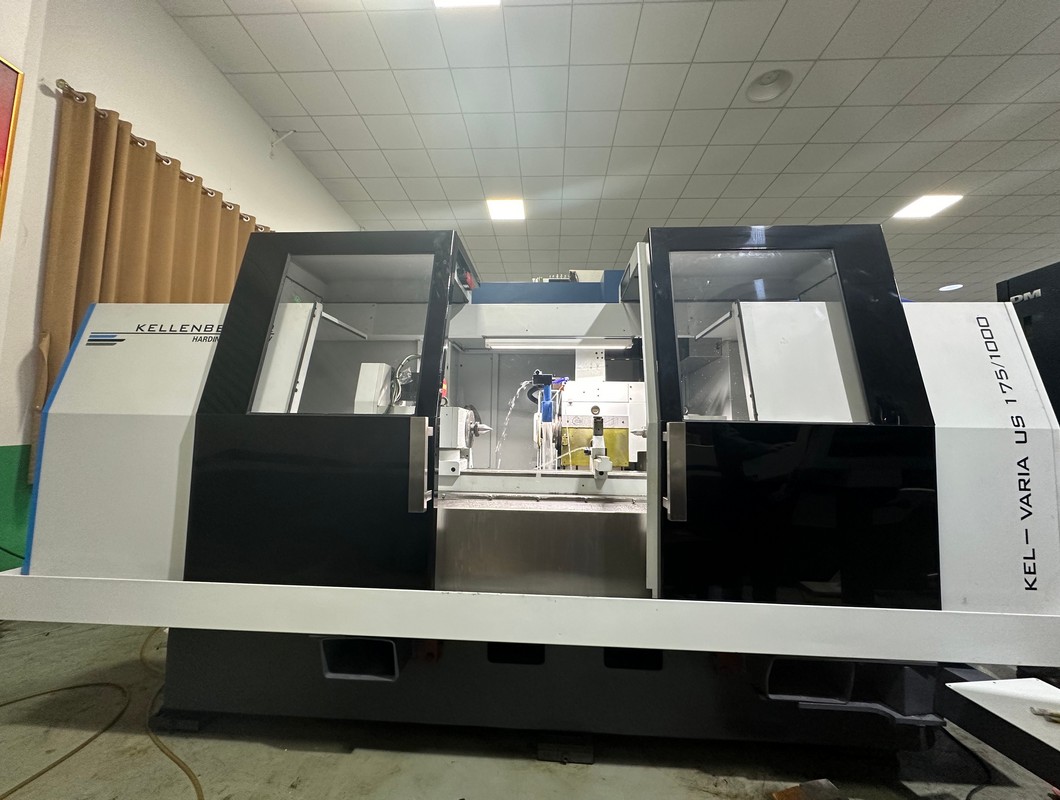

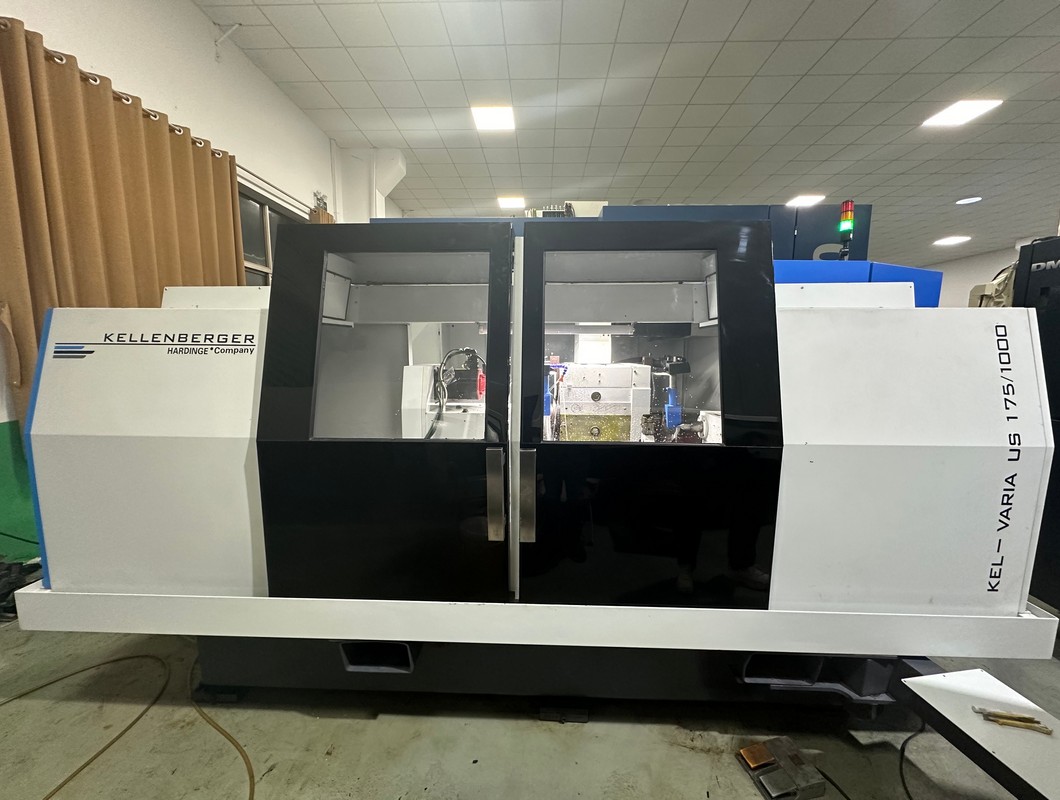

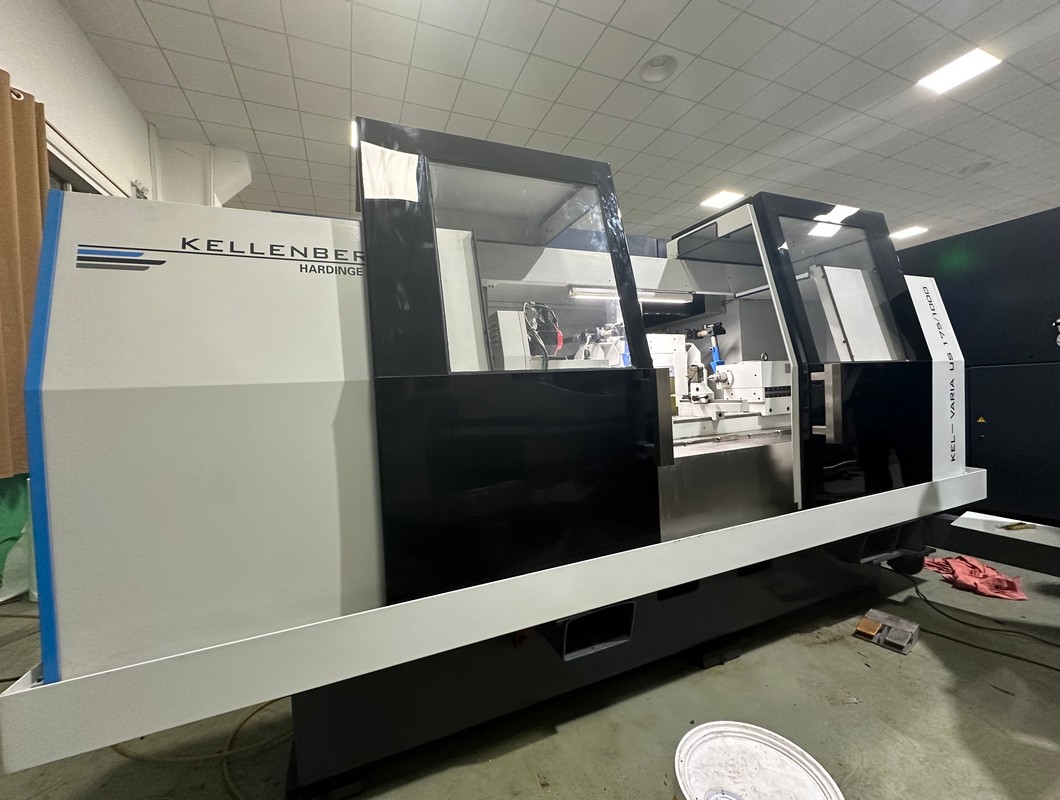

Klingberg HEL-VARIA US 175/1000 internal and external cylindrical grinding machine

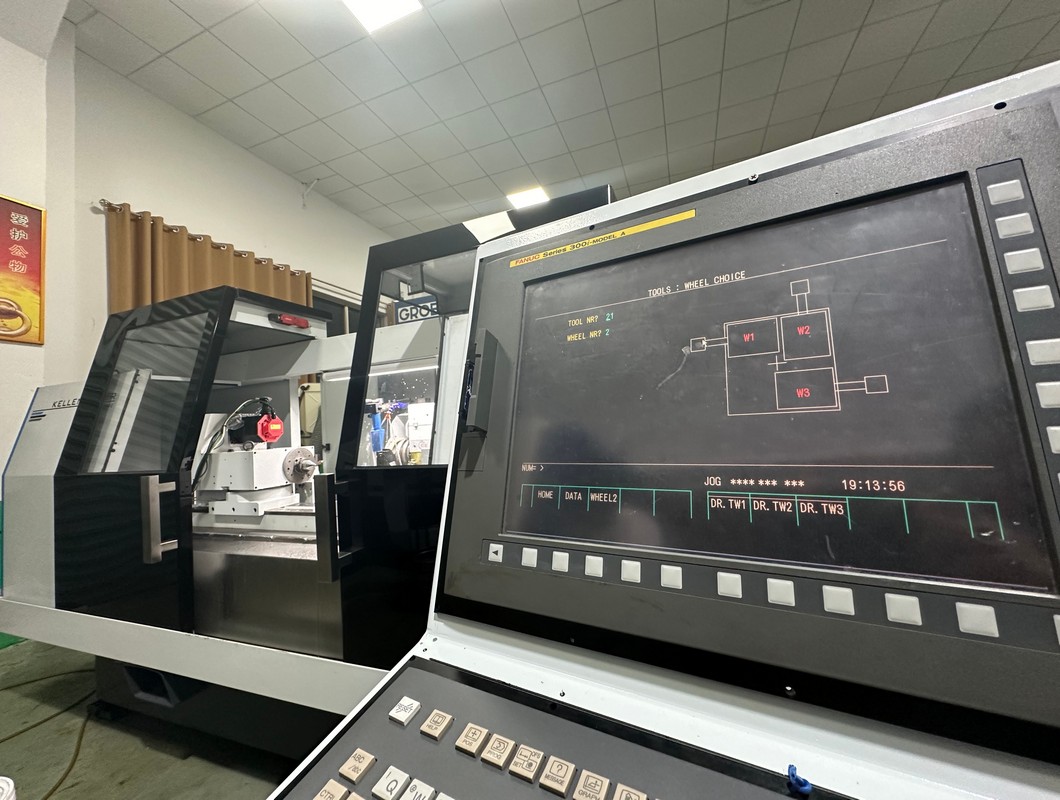

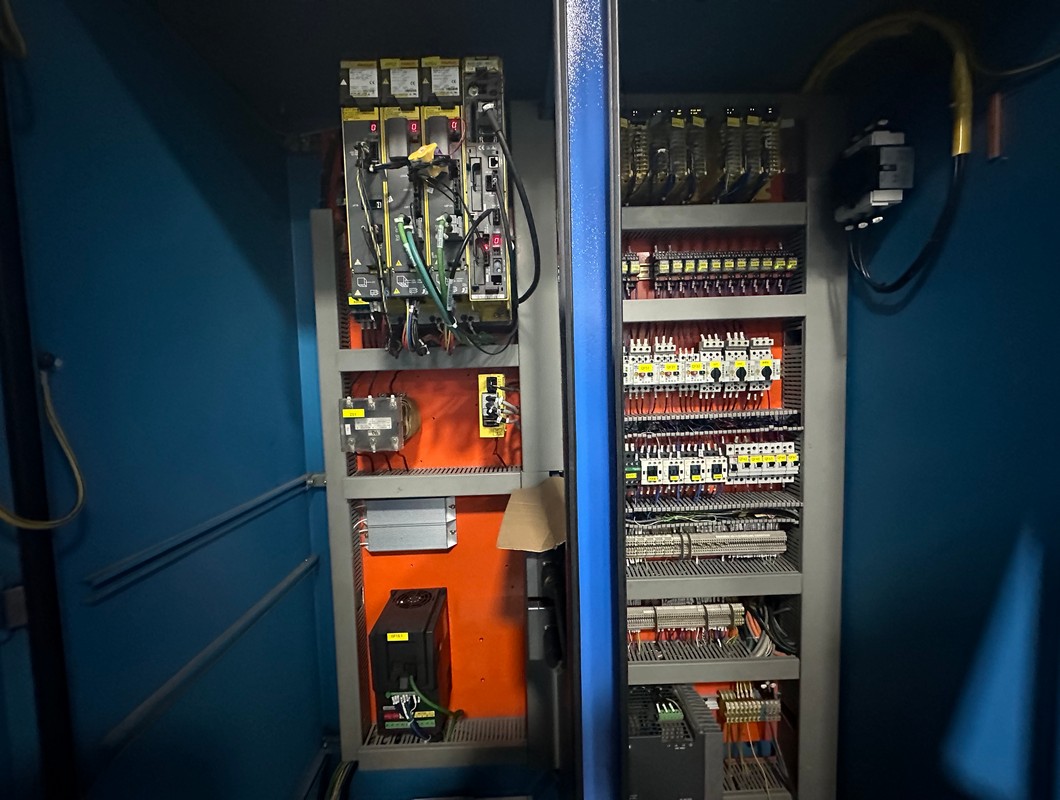

System: FANUC Origin: Switzerland
Total length 600 Center height 175 mm657164
Maximum distance between centers 800mm
Maximum grinding length: 600 mm Maximum workpiece diameter φ349 mm
Intermediate section fixed B axis Resolution to 0.1

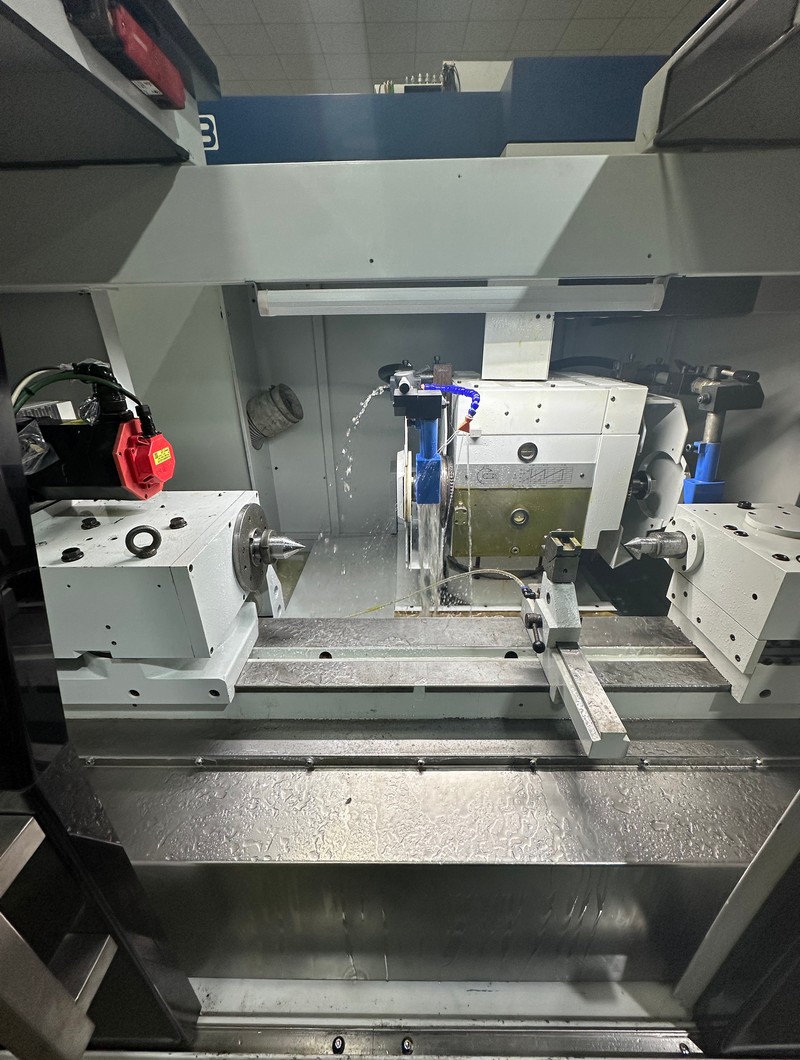

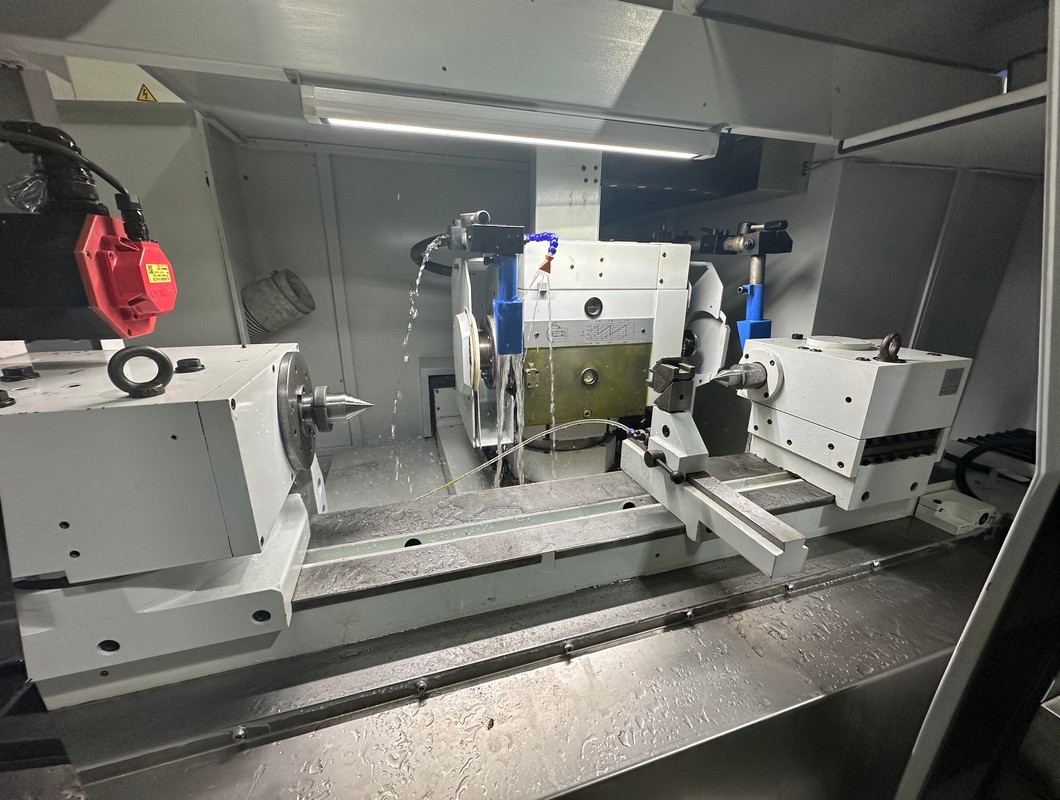

Working headstock (workpiece)
Rotation range -10°+100 Spindle speed (infinitely variable) I-1000 min'
Headstock MT5 Tailstock MT5/MT4 Short outer diameter DIN55026, size 5
Permissible load for excavation work 100 Nm Guaranteed concentricity <0.4 μm
Maximum load when grinding between centers 100 kg
Rotation range -10°+100° Spindle speed (infinitely variable) 1-1000 min.
Headstock MT5 Tailstoc Contact us
