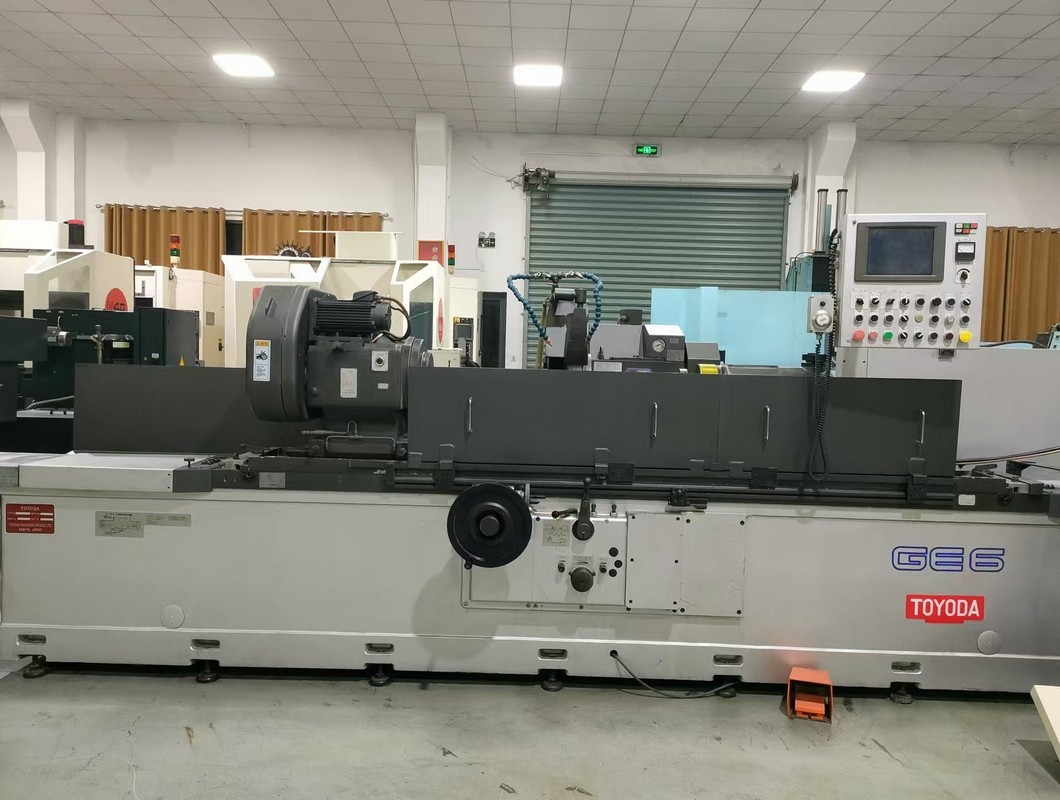

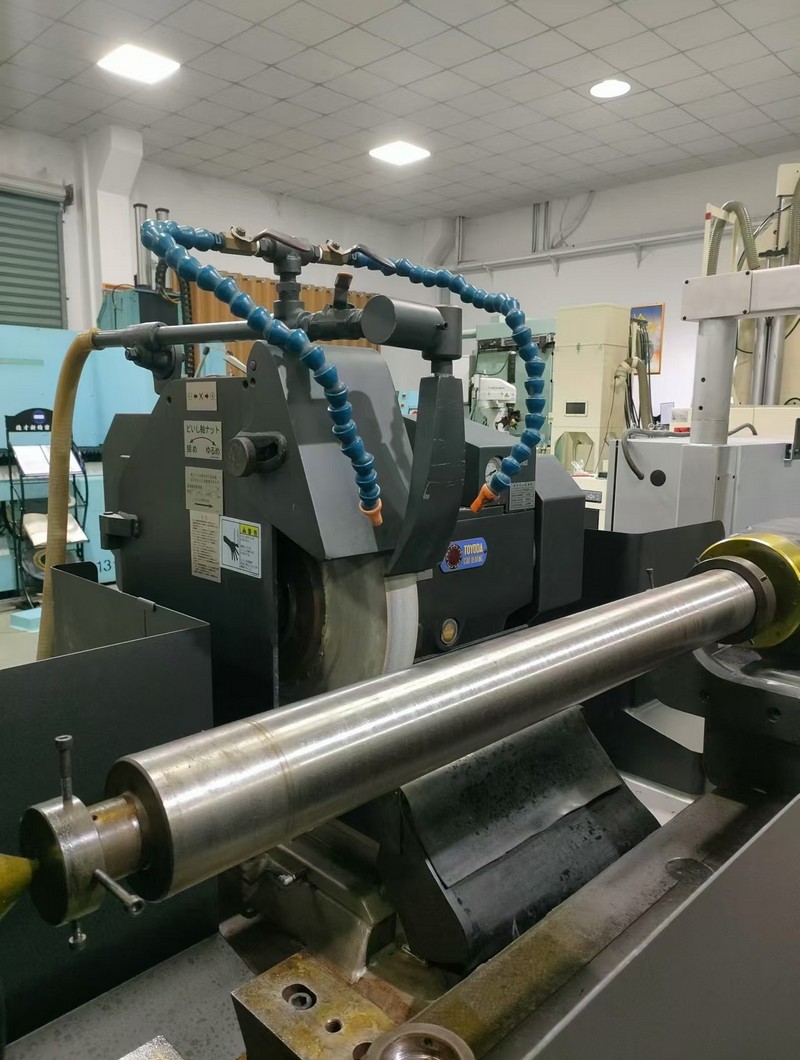

TOYODA GE6-180 cylindrical grinding machine
Origin: Japan
System: Toyota Machinery System
Processing length: 1800mm
X-axis stroke: 560 mm
Z-axis: 1800mm
Grinding wheel diameter Width inner diameter: φ610*75*203.2
Grinding diameter: 0~φ560mm
Guide rail method: Grinding wheel spindle static pressure XZ axis dynamic pressure
Each axis drive method: Z axis: hydraulic X axis: CNC
Head clamp CNC tail top Morse 5
Grinding stroke: 1800mm
Full stroke: 355mm
Feed stroke: 315mm
Minimum feed amount: 0.0001mm
Grinding wheel rotation angle: 0~ -10°
Feed speed: φ.~100 m/min
Minimum setting unit: φ0.001mm
Traverse speed: 50~4000 mm/min
Handle feed rate (2-stage switching) 16 Contact us
