STUDER S32 Non-circular Follower Cam External Cyli

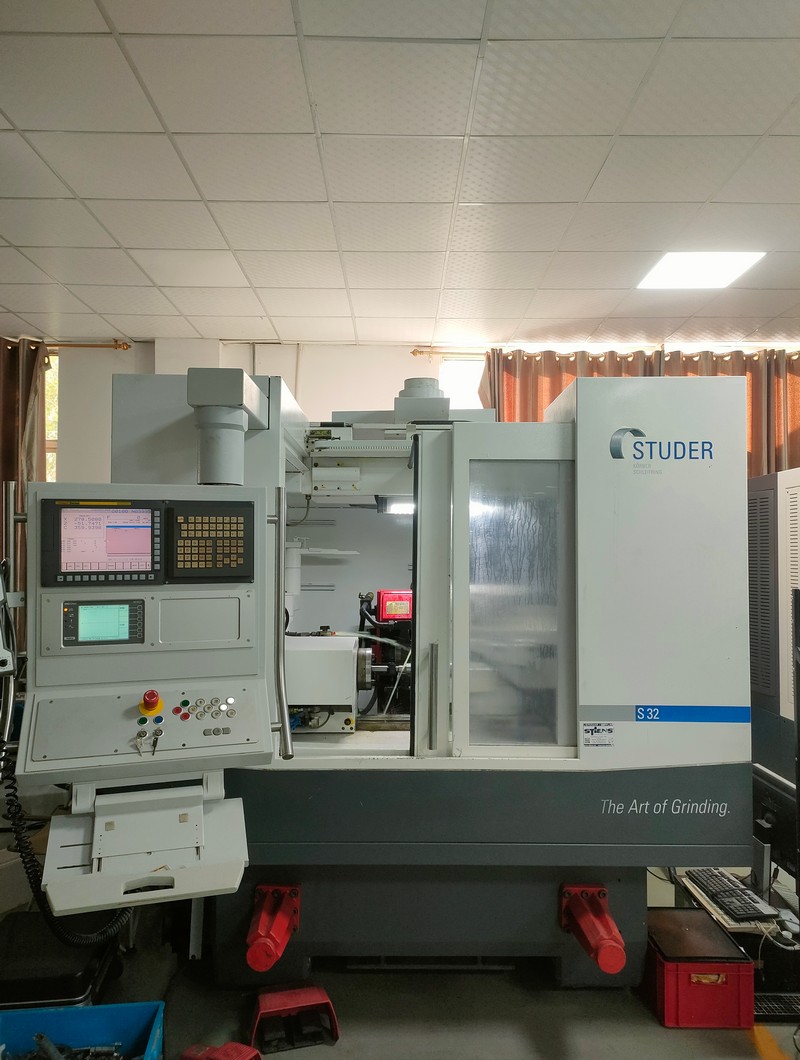

STUDER S32 Non-circular Follower Cam External Cylindrical Grinding Machine

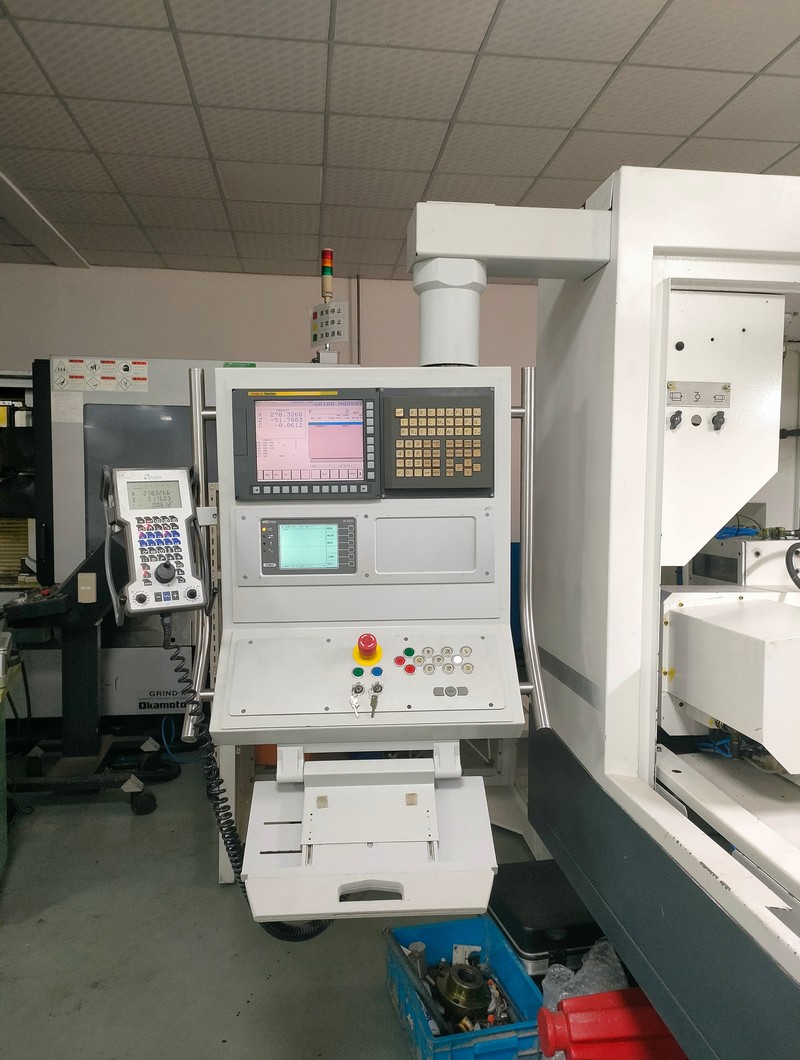

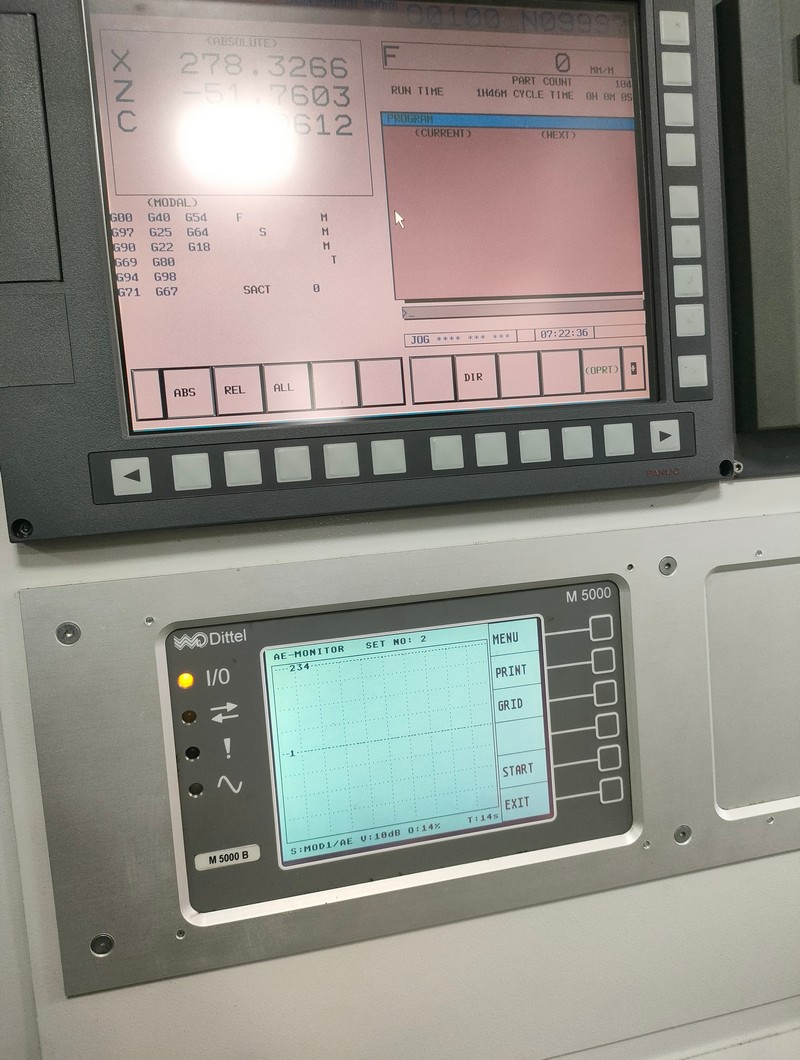

System: FANUC Series 160i-TB
Origin: Switzerland
X-axis travel: 16” (approximately 305 mm)
Spindle speed: up to 3,200 rpm
Output power: 10/16/26 hp (depending on configuration)
Axis distance: 400 mm
Center height: 175 mm
Maximum workpiece weight: 176 lbs (approximately 80 kg)

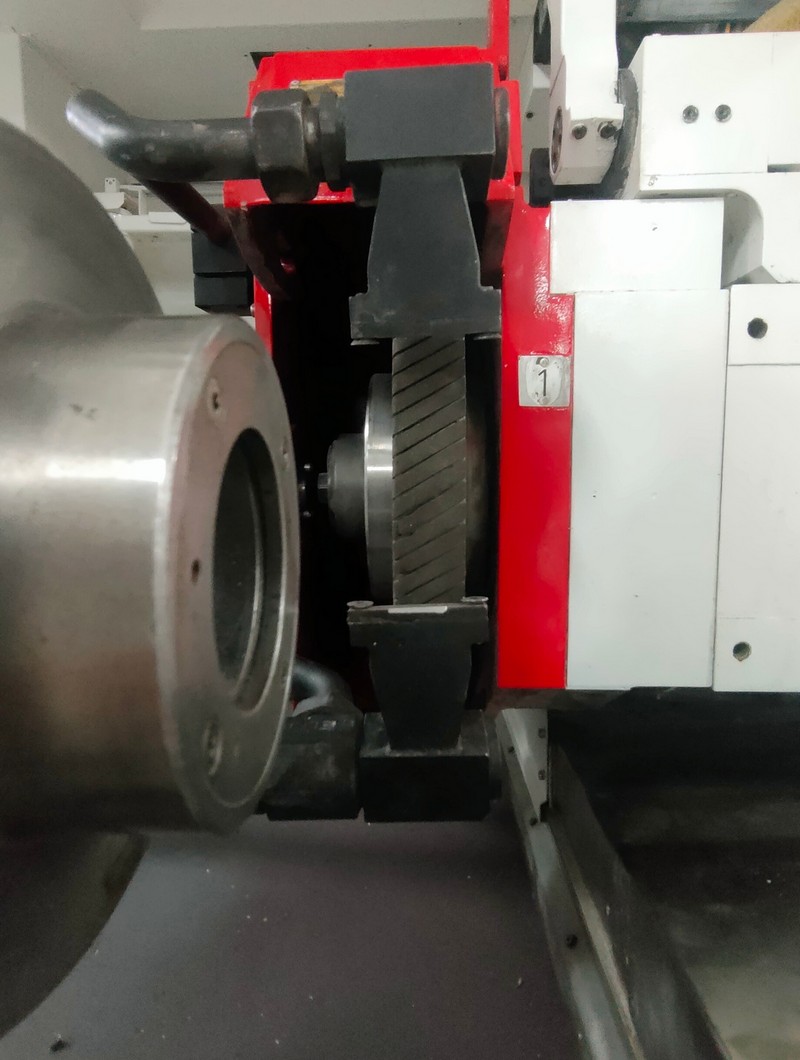

Grinding wheel size: 20 x 3” (approximately 508 x 76 mm)
Grinding wheel head swing range: +/- 8.5°
Externally mounted spindle nose: 110 mm Ø
Spindle bore: 50 mm Ø
Workpiece spindle head speed range: 1-1,000 rpm
Tailstock mounting taper: MK3
Piston stroke: 80 mm
Piston diameter: 50 mm
Contact us
System: FANUC Series 160i-TB
Origin: Switzerland
X-axis travel: 16” (approximately 305 mm)
Spindle speed: up to 3,200 rpm
Output power: 10/16/26 hp (depending on configuration)
Axis distance: 400 mm
Center height: 175 mm
Maximum workpiece weight: 176 lbs (approximately 80 kg)
Grinding wheel size: 20 x 3” (approximately 508 x 76 mm)
Grinding wheel head swing range: +/- 8.5°
Externally mounted spindle nose: 110 mm Ø
Spindle bore: 50 mm Ø
Workpiece spindle head speed range: 1-1,000 rpm
Tailstock mounting taper: MK3
Piston stroke: 80 mm
Piston diameter: 50 mm
Contact us
