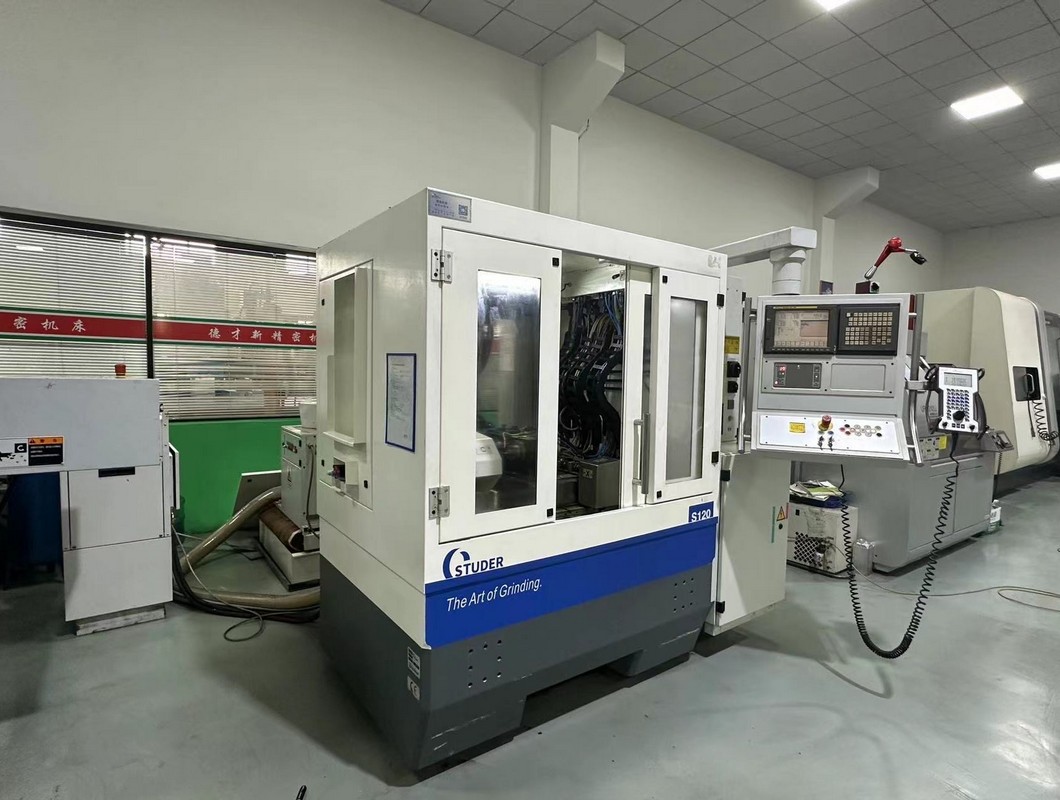

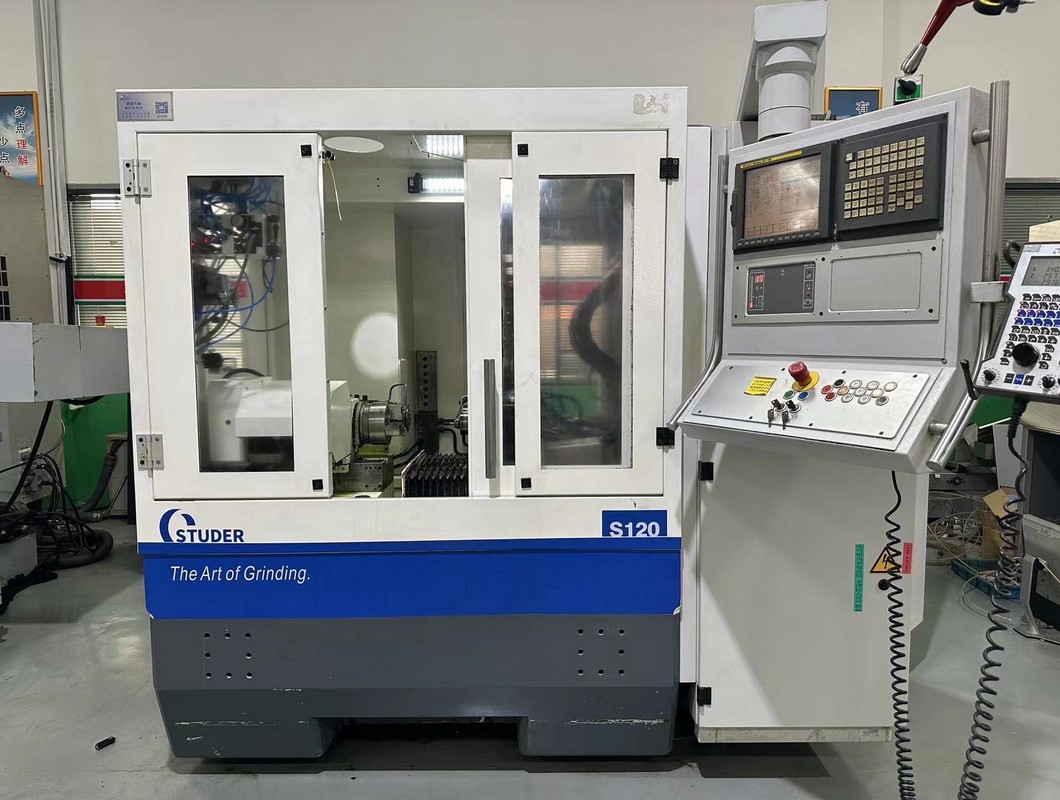

Swiss Stutt S120 CNC internal grinding machine
Origin: Switzerland

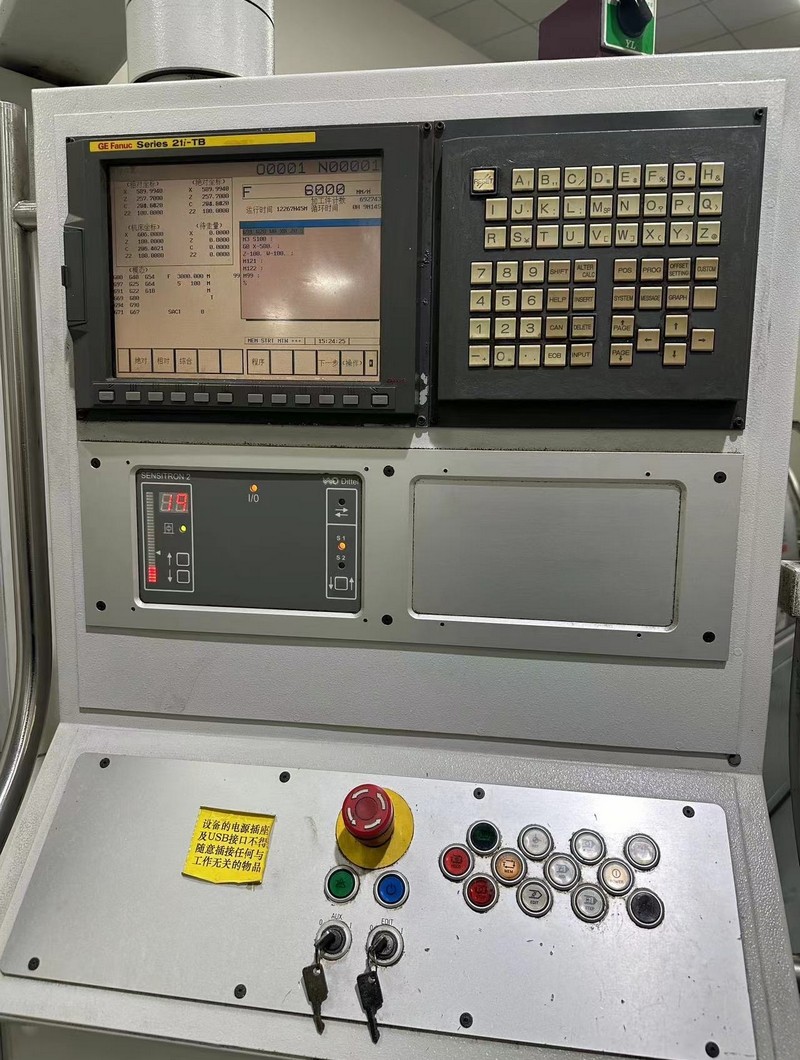

System: FANUC Series 21i-TB
Main technical specifications: Center height: 125mm
Swing diameter: 130mm
■Horizontal slide: X-axis travel: 300mm
Speed: 20000mm/min
Resolution: 0.0001mm
Guide spacing: 280mm
■Vertical slide: Z-axis travel: 180mm
Speed: 15000mm/min
Resolution: 0.0001mm
Guide: Rolling bearing/dynamic bearing (option)

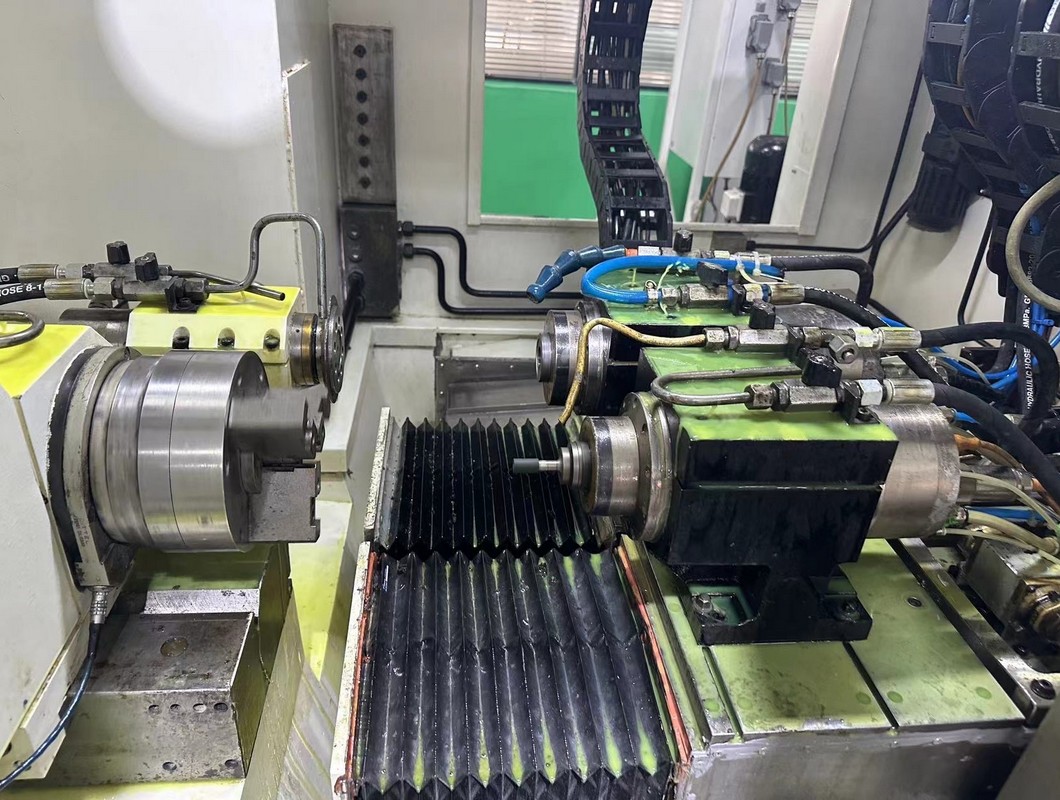

■Turret grinding wheel head:
Spindle installation: parallel Number of spindles: 2
Spindle installation diameter: 100mm/120mm
Spindle speed - internal grinding: 12000rpm Spindle speed - external cylindrical grinding: 7000rpm
■ Workpiece head:
Speed range: 1-1500rpm
