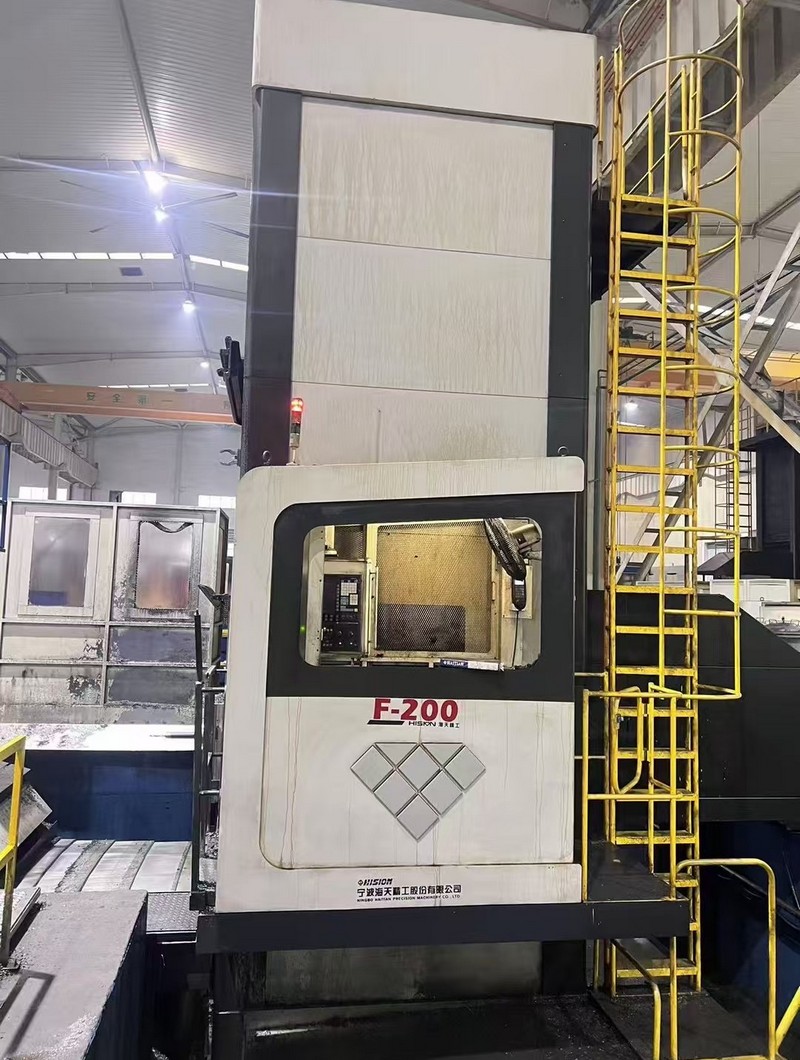

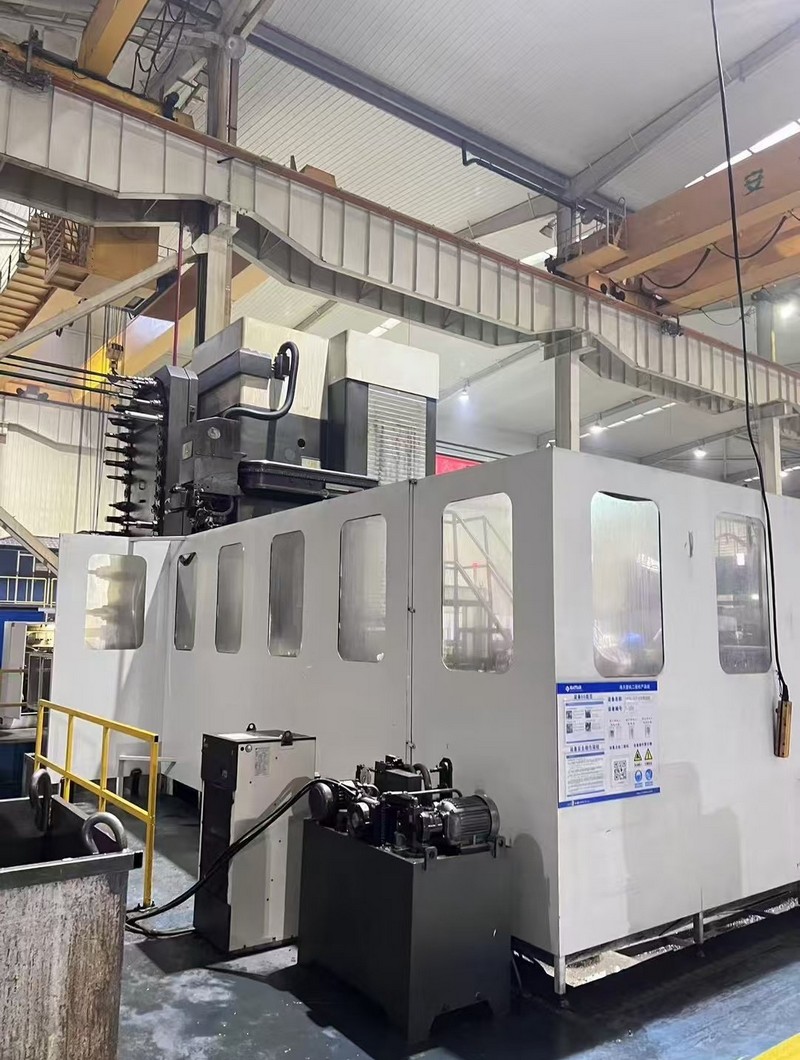

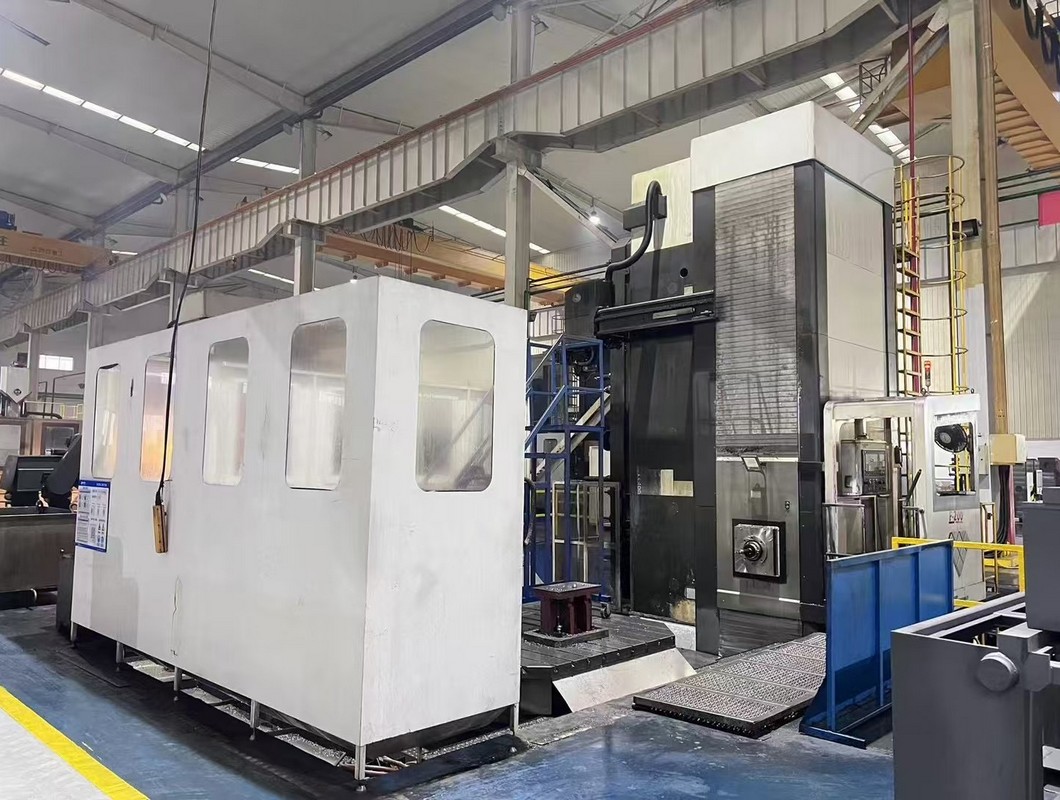

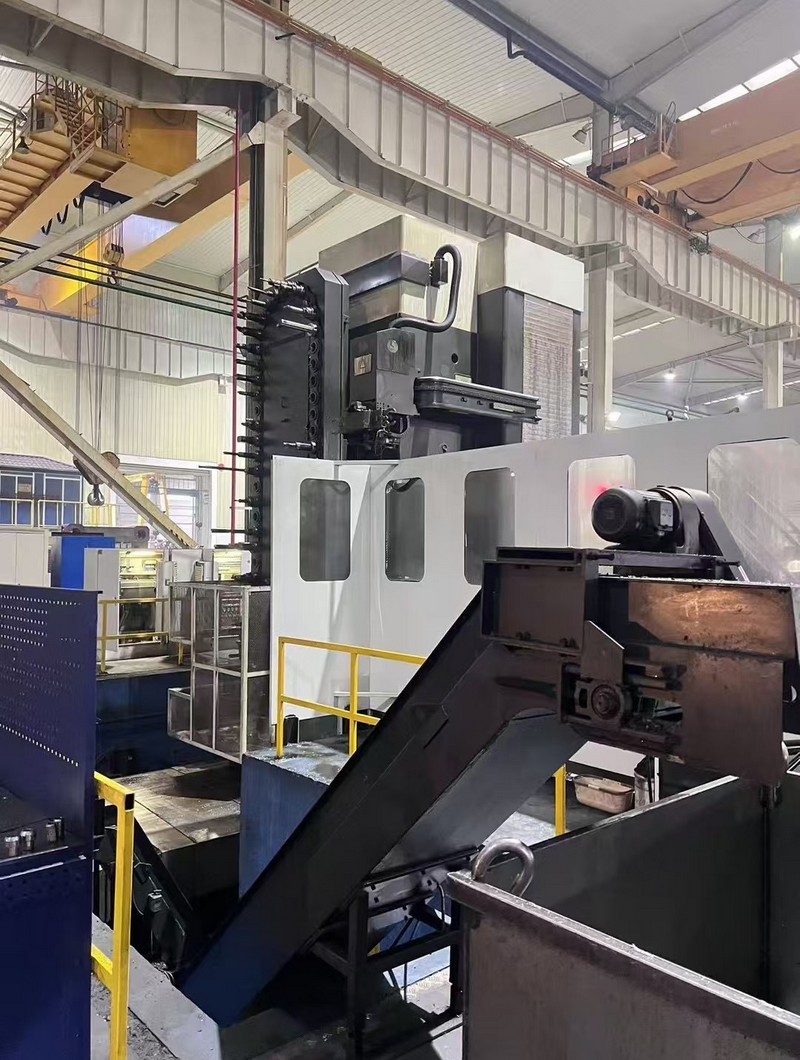

Japan Niigata Haitian HTM-200 CNC floor-standing boring and milling machine

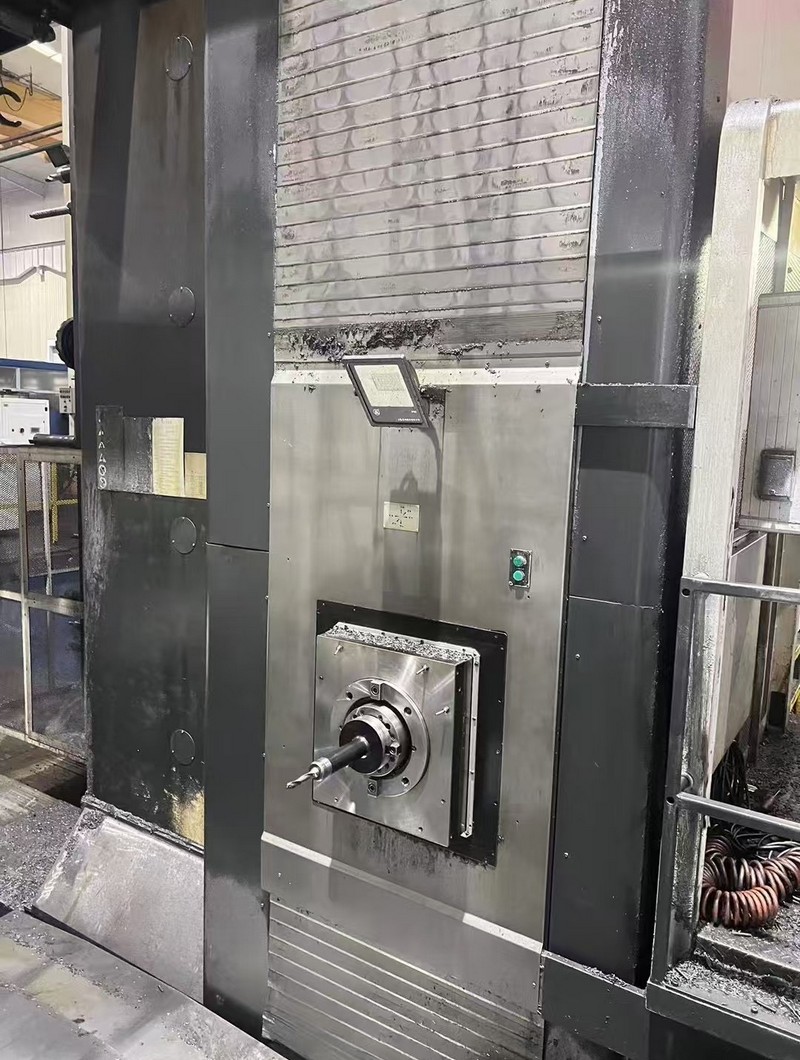

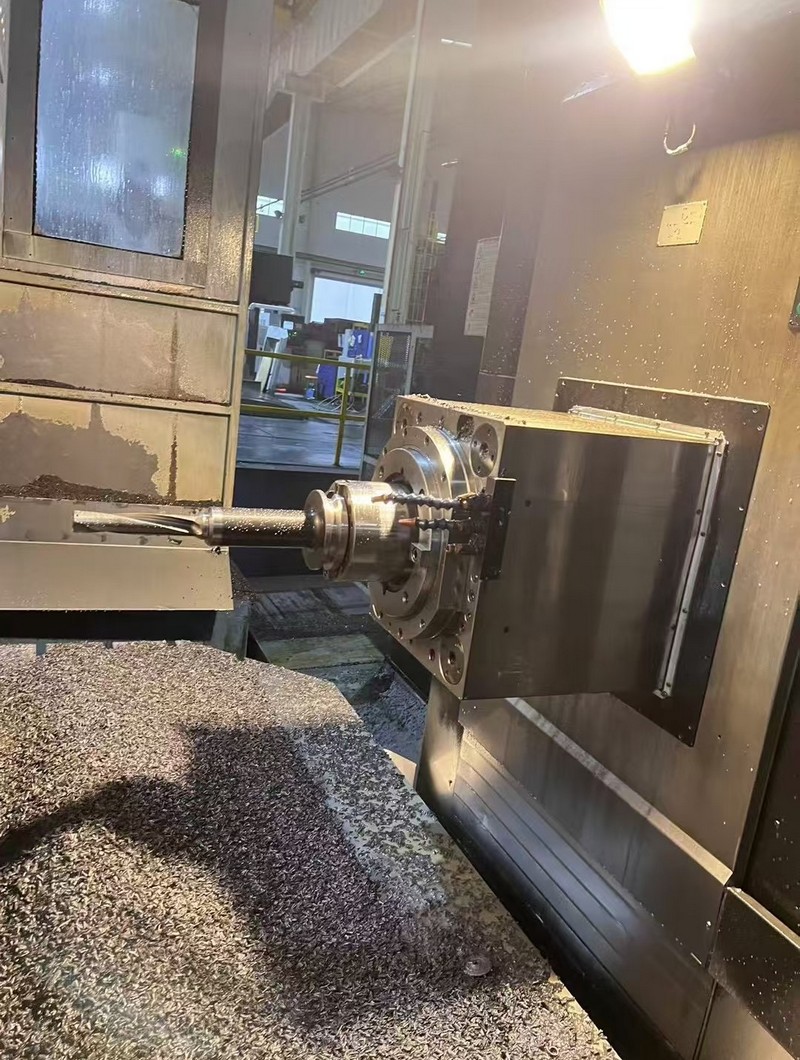

W-axis boring spindle diameter mm Ф200
Spindle journal mm Ф340
Ram section size mm 480x520
Ram axis travel mm 1,200
Boring bar travel mm 1,200
Z, W axis superimposed travel mm 2,400
Y, axis spindle box up and down travel mn3,000
X, axis column travel mm 4000
CNC worktable mm 2500X2500
Installed tool holder model (BT60)
Boring spindle speed range r/mi 3~1,250
Spindle maximum torque N.m 10000
Boring spindle axial travel mm 1,200
Boring spindle maximum rapid traverse speed mm/m 6,000
Minimum distance from spindle to worktable 400
Tool magazine, private service drive, 60 tools
Column guide rail span mm Contact us
