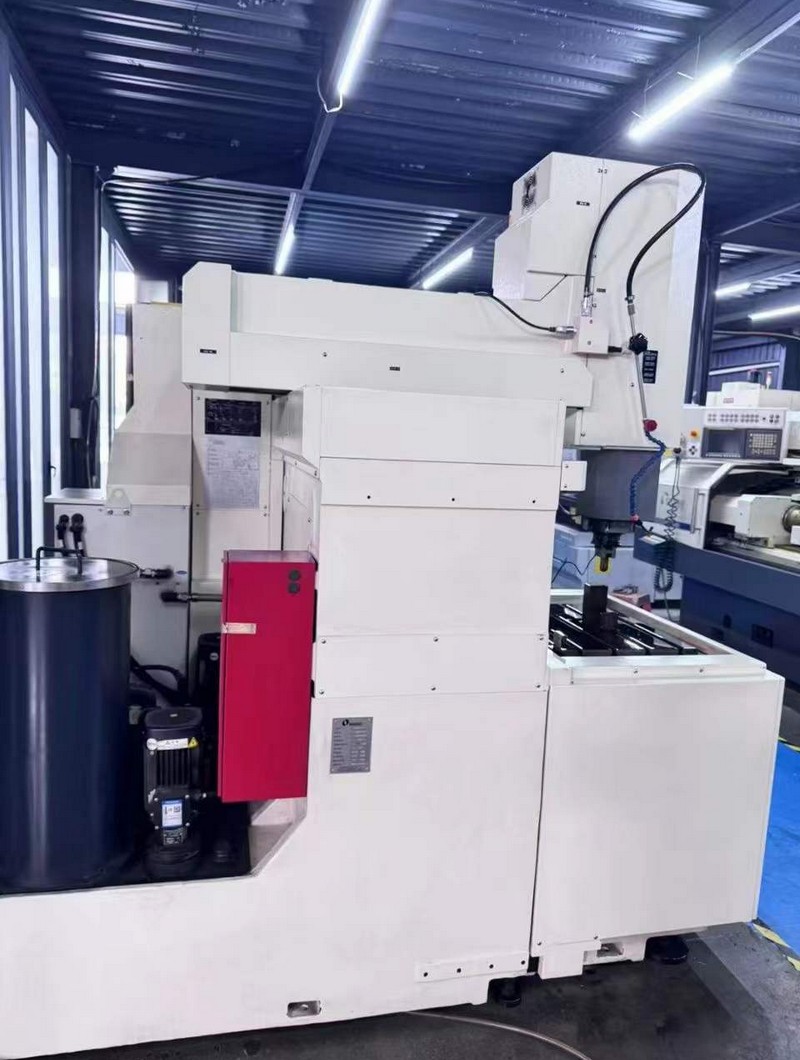

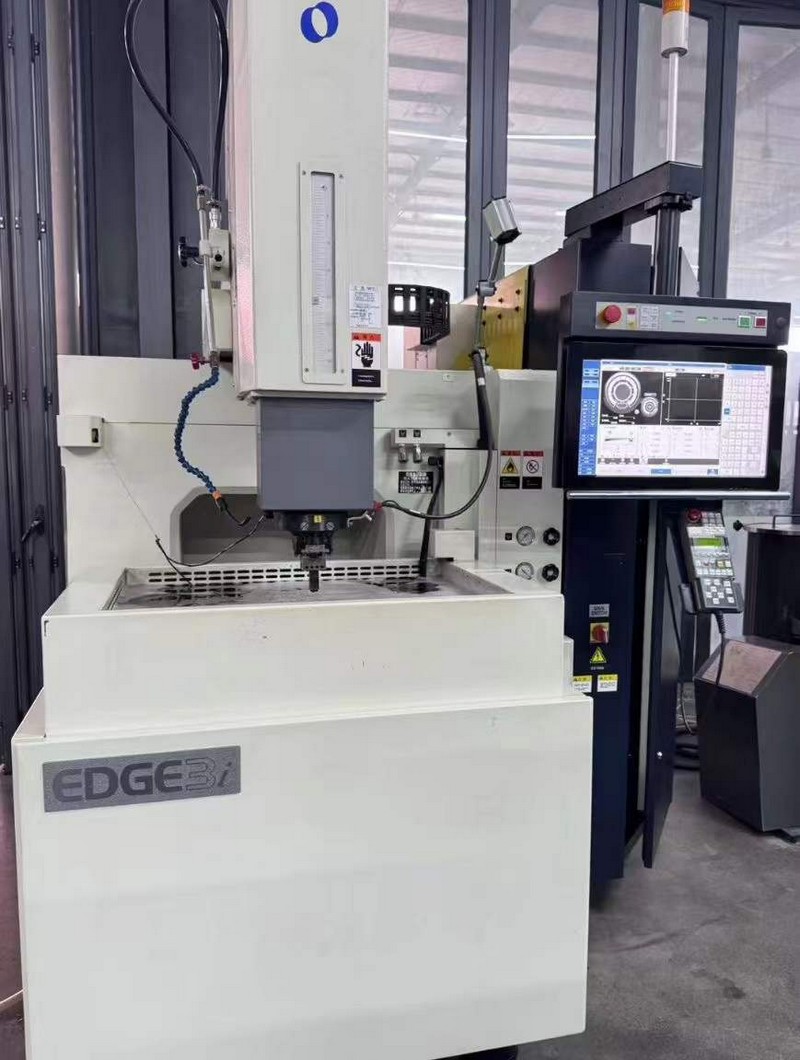

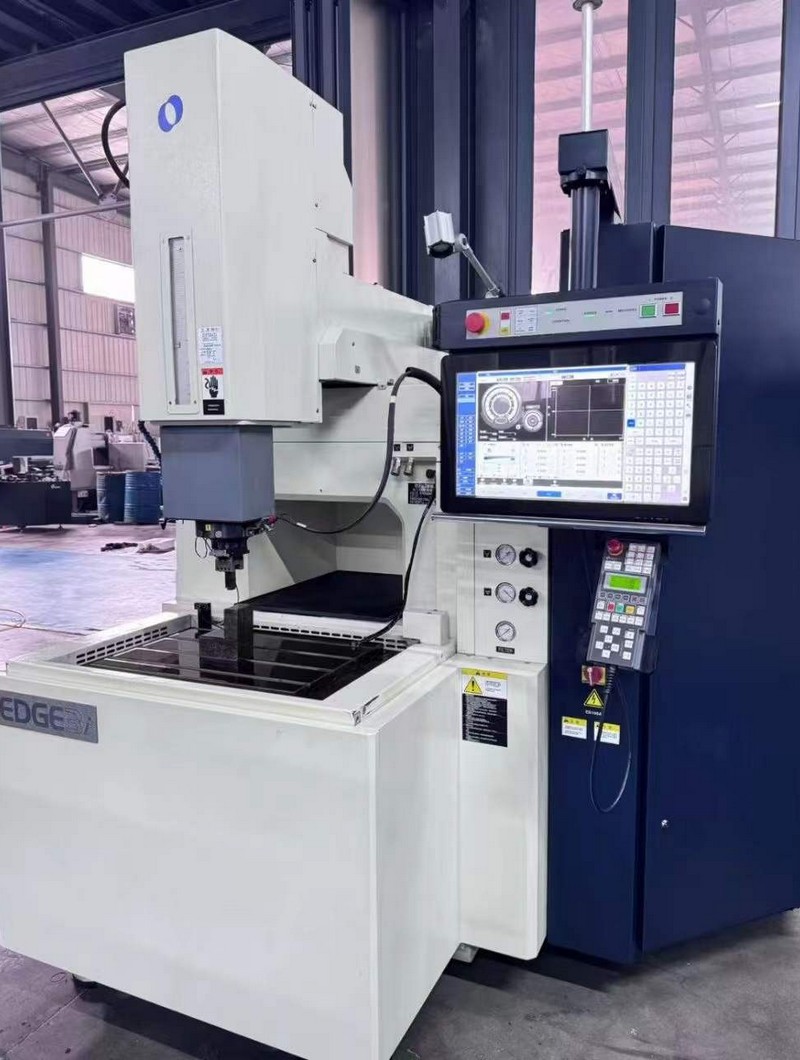

Makino EDGE3i EDM with C-axis
Makino EDGE3i EDM with C-axis
Travel X×Y×Z: 450 × 300 × 320mm
Working fluid tank inner dimensions: 800 × 550 × 350mm
Workbench area: 600 × 450mm
Maximum electrode weight: 50kg
Maximum processing power capacity: 40A
Maximum workpiece weight: 800kg
Fast moving speed: 5000mm/min
Processing tank opening and closing method: Automatically up and down when the processing tank is full
Number of filters: 2
Total amount of processing fluid: 380L
Contact us
Travel X×Y×Z: 450 × 300 × 320mm
Working fluid tank inner dimensions: 800 × 550 × 350mm
Workbench area: 600 × 450mm
Maximum electrode weight: 50kg
Maximum processing power capacity: 40A
Maximum workpiece weight: 800kg
Fast moving speed: 5000mm/min
Processing tank opening and closing method: Automatically up and down when the processing tank is full
Number of filters: 2
Total amount of processing fluid: 380L
